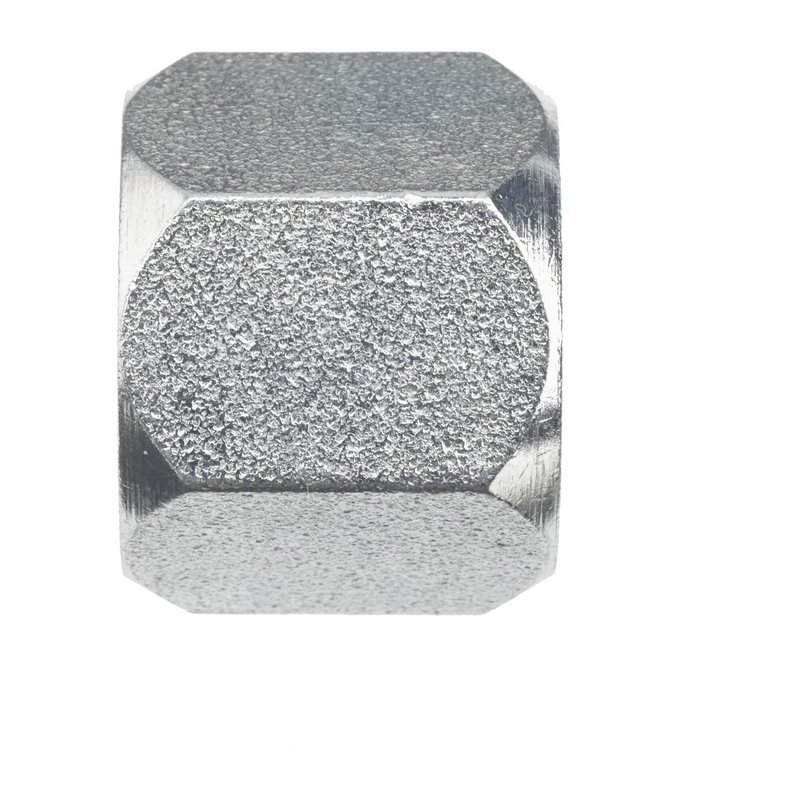

The Brennan 0304-C-08 Female JIC Cap is built for rugged hydraulic applications requiring secure sealing. With a 1/2″ Tube OD and a 3/4–16 thread, this cap meets SAE J514 specifications and fits standard JIC fittings seamlessly. Crafted from high-strength straight steel and treated with CR3 plating, it resists corrosion and environmental wear. Designed for straight-line applications, it offers an overall length of 0.75 in.and a convenient 0.875? hex for easy torque application. Rated for up to 6000 PSI of dynamic pressure, this cap is perfect for maintenance, protection, or system shutdowns in industrial, construction, and fluid power systems.
- Precision Threading: Female JIC SAE 37° Flare – 3/4–16 thread as per SAE J514 standard
- Heavy-Duty Build: Straight steel body with CR3 plating ensures long-lasting durability
- High Pressure Performance: Supports dynamic pressure up to 6000 PSI for demanding hydraulic setups
- Optimized Size: 0.75" overall length with 0.875" hex for secure and easy installation
- Safety Notice: PROP-65 warning applicable for California residents
Specification | Details |
Thread B1 Type | Female JIC SAE 37 Degree Flare |
Thread B1 Size | Tube OD 1/2 |
Thread B1 Drill In | 3/4-16 |
Thread B1 Specification | SAE J514 |
C Hex 1 | 0.875 in |
Overall Length (L) | 0.75 in |
Shape | Straight |
Body Material | Steel |
Raw Material Type | Straight Steel |
Plating | Cr3 |
Weight | 0.0802 lbs |
Maximum Dynamic Pressure | 6000 PSI |
California Residents | Prop-65 Warning |
Cubic in. (L ? W ? H) | 0.574 |
