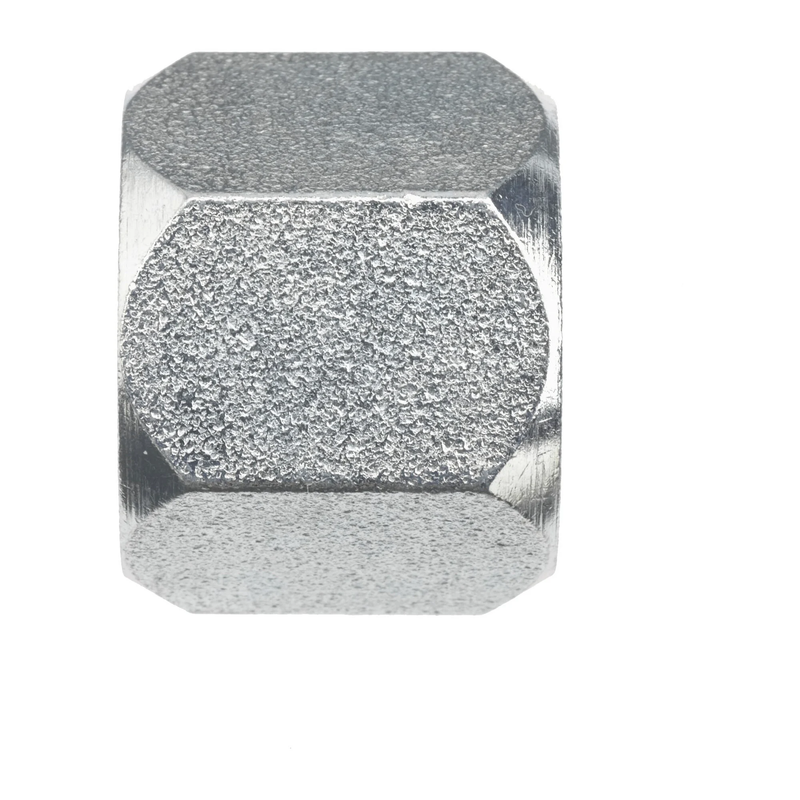

The Brennan 0304-C-10 Female JIC Cap is engineered to deliver secure sealing in high-pressure hydraulic systems. Designed for 5/8 Tube OD with a 7/8-14 thread, this straight cap fits perfectly with standard JIC SAE 37° Flare fittings, ensuring leak-free performance. Built from high-quality straight steel and finished with a corrosion-resistant CR3 plating, this fitting offers reliable durability in industrial, agricultural, or mobile equipment settings. It features a robust design with a 1 hex size for secure tightening and a compact 0.84 body length. With a maximum dynamic pressure rating of 5000 PSI, this cap is essential for system protection during maintenance or shutoff. Note: PROP-65 warning applies for California users.
- Thread Specs: Female JIC SAE 37° Flare with 7/8-14 thread, compliant with SAE J514
- Sturdy Steel Body: Made from straight steel for long-term strength and durability
- Pressure Rated: Handles dynamic hydraulic pressure up to 5000 PSI in demanding systems
- Precision Fit: 0.84" overall length with 1" hex for reliable sealing and easy installation
- Compliance Notice: Includes PROP-65 warning for California residents
| Specification | Details |
| Thread B1 Type | Female JIC SAE 37° Flare |
| Thread B1 Size | Tube OD 5/8 |
| Thread B1 Drill In | 7/8-14 |
| Thread B1 Specification | SAE J514 |
| C Hex 1 | 1 in |
| Overall Length (L) | 0.84 in |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight | 0.1073 lbs |
| Maximum Dynamic Pressure | 5000 PSI |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 0.84 |
