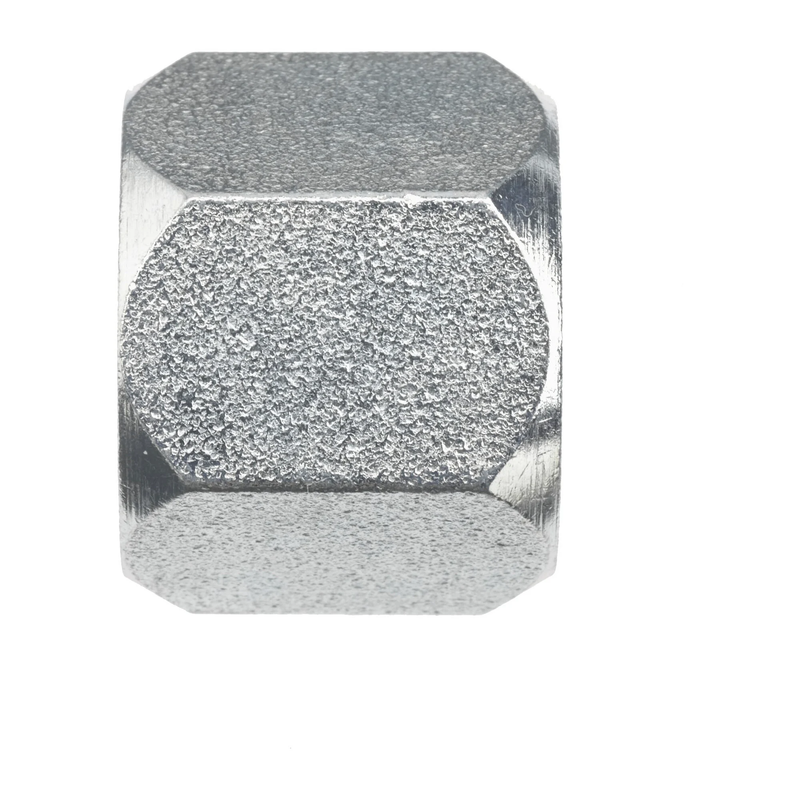

The Brennan 0304-C-20 Female JIC Cap is engineered for secure sealing of 1-1/4 tube outer diameter hydraulic fittings with SAE 37 Flare threads (1-5/8-12). Constructed from high-strength straight steel and protected with CR3 plating, this cap offers excellent corrosion resistance and durability. Designed as a straight fitting, it provides a reliable seal in hydraulic systems operating up to 4000 PSI dynamic pressure. The large 2 hex design allows for easy installation and firm torque application. Perfect for protecting system integrity during maintenance, shutdowns, or storage. PROP-65 warning applies for California residents.
- Thread Type: Female JIC SAE 37 Flare, 1-5/8-12 thread per SAE J514 standard
- Durable Material: Straight steel body with CR3 plating for corrosion protection
- High Pressure Rating: Withstands dynamic pressure up to 4000 PSI
- Dimensions: 1.06" overall length with 2" hex for secure tightening
- Compliance: Includes PROP-65 warning for California residents
| Specification | Details |
| Thread B1 Type | Female JIC SAE 37 Degree Flare |
| Thread B1 Size | Tube OD 1-1/4 |
| Thread B1 Drill In | 1-5/8-12 |
| Thread B1 Specification | SAE J514 |
| C Hex 1 | 2 in |
| Overall Length (L) | 1.06 in |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight | 0.55 lbs |
| Maximum Dynamic Pressure | 4000 PSI |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 4.24 |
