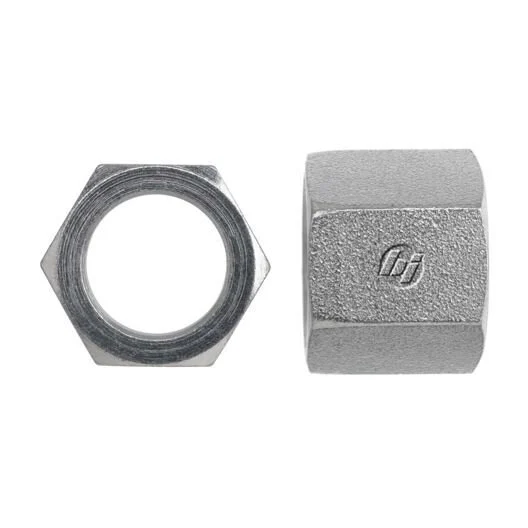

This 1/4" Tube Nut Hydraulic Fitting by Brennan Industries ) is a straight, high-strength steel connector designed for secure and leak-free hydraulic connections. It features a 7/16-20 JIC thread per SAE J514 standards and is CR3 plated for corrosion resistance. Compact and lightweight, its ideal for high-pressure applications in tight spaces.
- Thread Size: 7/16-20 JIC (SAE J514 Standard)
- Material: High-strength steel with CR3 plating for corrosion resistance
- Shape: Straight design for clean, direct connections
- Compact Size: Overall length of 0.61 in.
- Hex Size: 0.562 in. for easy installation
- Lightweight: Only 0.0255 lbs
- Prop 65 Compliant
- Space-Efficient: Compact 0.196 cubic in. footprint
| Thread B1 Type | JIC Tube Nut |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.304 |
| Thread B1 Specification | SAE J514 |
| C Hex 1 in. | 0.562 |
| Overall Length L in. | 0.61 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | CR3 |
| Weight | 0.0255 Lbs |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 0.196 |
