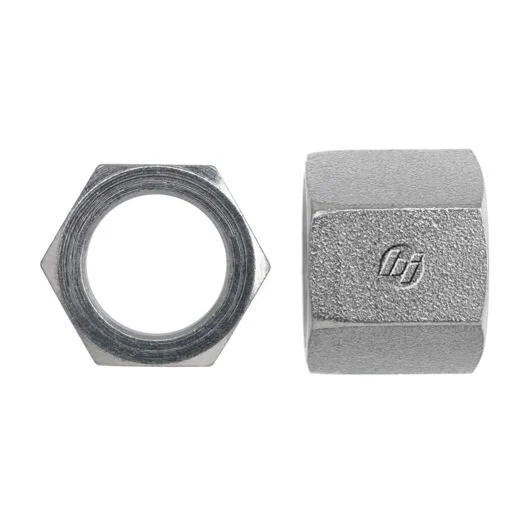

The Brennan Industries #6 JIC Tube Nut is a straight hydraulic fitting made from corrosion-resistant stainless steel, ideal for demanding environments. It features a 9/16-18 JIC thread per SAE J514 standards and a compact design for tight installations. With a lightweight build and 0.73" overall length, it ensures reliable, leak-proof performance.
- 9/16-18 JIC thread (SAE J514 compliant)
- Made from durable stainless steel
- Compact length of 0.73" for space-sensitive setups
- 0.688" hex size for easy wrench access
- Lightweight at just 0.04 lbs
| Thread B1 Type | Jic Tube Nut |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.439 |
| Thread B1 Specification | Sae J514 |
| C Hex 1 in. | 0.688 |
| Overall Length L in. | 0.73 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight (lbs) | 0.04 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 0.346 |
