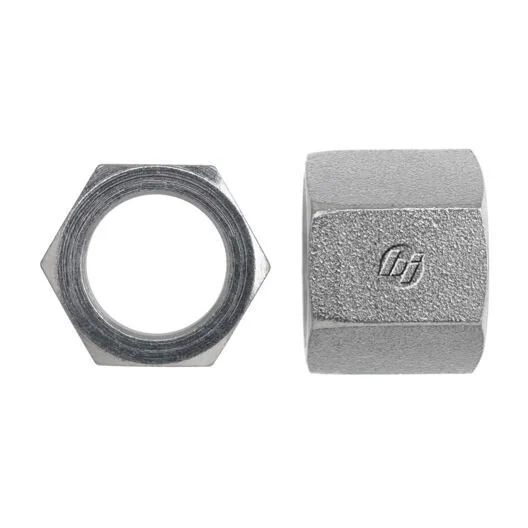

The Brennan Industries #8 JIC Tube Nut is a straight hydraulic fitting made from strong CR3-plated steel for durability and corrosion resistance. It features a 3/4-16 JIC thread as per SAE J514 standards and a compact, easy-to-install design. Perfect for high-pressure hydraulic applications in industrial environments.
- 3/4-16 JIC thread (SAE J514 compliant)
- Made from steel with corrosion-resistant CR3 plating
- Overall length of 0.85" for space-efficient use
- 0.875" hex size for secure wrench fit
- Lightweight at 0.0675 lbs
| Thread B1 Type | Jic Tube Nut |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.568 |
| Thread B1 Specification | Sae J514 |
| C Hex 1 in. | 0.875 |
| Overall Length L in. | 0.85 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight (lbs) | 0.0675 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 0.651 |
