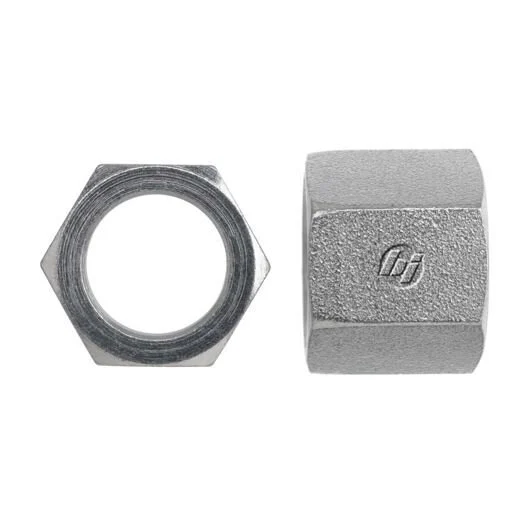

The Brennan 0318-08-SS JIC Tube Nut is a performance hydraulic fitting designed for leak-proof, secure connections in high-fluid power applications. Brenna, LLC products are made from corrosion-resistant stainless steel; The 1/2-in. female JIC nut has a 37° flare for SAE 3/4–16 connections. Because this product is made for high-pressure applications, it is durable, designed with precision, and compact. When high performance is required, choose the Brennan 0318-08-SS JIC tube nut, an excellent quality connection for industrial, aerospace, and hydraulic systems.
- Model: Brennan 0318-08-SS
- Type: 37° Flare JIC Tube Nut
- Material: Corrosion and rust-resistant high-grade Stainless Steel
- End 1: 1/2 in.
- SAE 3/4?16 thread
- Setup: Female JIC, 1/2 in.
- Total Size: 0.7 in.
- Length: 0.8 in.
- Width: 0.8 in.
- Total Length: 0.84 in.
- Weight: roughly 0.05 kg, 0.01 lbs.
- Uses: industrial equipment, hydraulic systems, oil and gas, fluid power
- Built for vibrating-heavy, high-pressure surroundings
- End: For improved grip and torque, precision-machined with a tough texture
| Specification | Details |
| Adapter Type | JIC Nut |
| Description Keyword | 1/2 in JIC 37° Flare |
| End 1 Size | 1/2 in |
| End 1 Style | JIC 37° Flare |
| End 1 Thread | (SAE) 3/4–16 |
| Height | 0.7 |
| Length | 0.8 |
| Material | Stainless Steel |
| Overall Length | 0.84 in |
| Weight | 0.01 lbs, 0.05 |
| Width | 0.8 |
