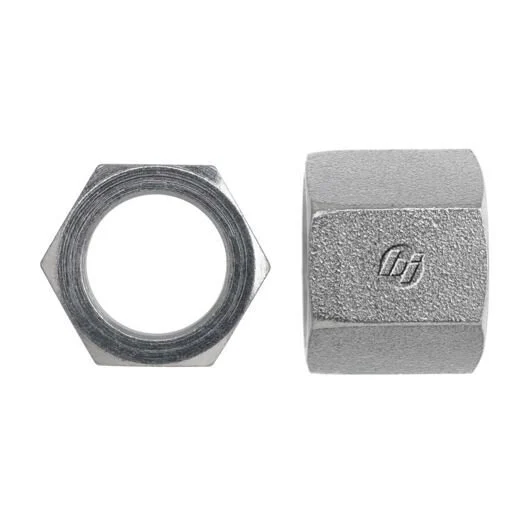

The Brennan Industries #10 JIC Tube Nut (Item ID: 0318-10-SS) is a high-quality stainless steel hydraulic fitting built for superior performance in corrosive or demanding environments. With a 7/8-14 JIC thread conforming to SAE J514 standards, this straight tube nut is ideal for ensuring secure and long-lasting connections in fluid transfer systems.
- 7/8-14 JIC thread for standardized, pressure-tight connections
- Made from corrosion-resistant stainless steel for harsh environments
- Straight configuration supports clean and direct tube routing
- 1" hex size allows easy installation with standard tools
- Weighs 0.07 lbs durable yet lighter than its steel counterpart
| Thread B1 Type | Jic Tube Nut |
| Thread B1 Size | 7/8-14 |
| Thread B1 Drill In | 0.696 |
| Thread B1 Specification | Sae J514 |
| C Hex 1 in. | 1 |
| Overall Length L in. | 0.98 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight (lbs) | 0.07 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 0.98 |
