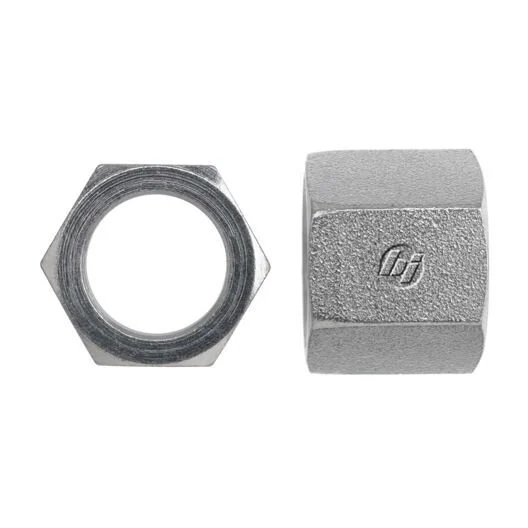

The Brennan Industries #12 JIC Tube Nut (Item ID: 0318-12) is a sturdy hydraulic fitting designed to deliver secure and leak-resistant connections in high-pressure systems. Crafted from CR3-plated steel, it features a 1-1/16-12 JIC thread in accordance with SAE J514 standards. Its straight shape and robust construction make it ideal for demanding industrial applications.
- 1-1/16-12 JIC thread meeting SAE J514 standards
- Durable steel body with corrosion-resistant CR3 plating
- Straight design for easy and efficient installation
- 1.25" hex size for strong torque application
- Weighs 0.1767 lbs, suitable for heavy-duty hydraulic systems
| Thread B1 Type | Jic Tube Nut |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.832 |
| Thread B1 Specification | Sae J514 |
| C Hex 1 in. | 1.25 |
| Overall Length L in. | 1.03 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight (lbs) | 0.1767 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 1.609 |
