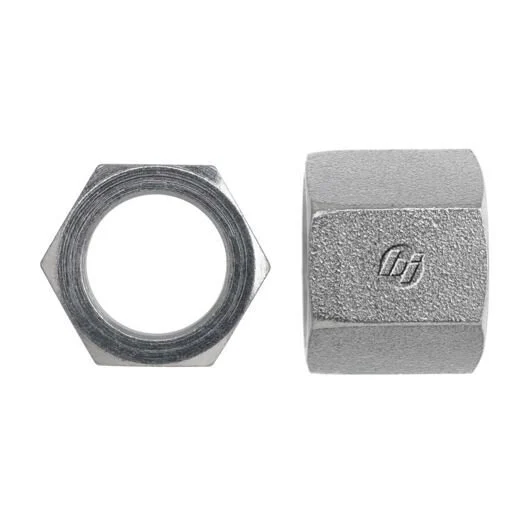

Our Series 0318-SS JIC Tube Nuts made of stainless steel are vital elements used for securing hydraulic and pneumatic tube connections in high-performance and reliable systems. These tube nuts are designed specifically to accompany JIC (Joint Industry Council) fittings, which contain a flared 37-degree seat. The combination of JIC tube fittings and these tube nuts create a secure, leak-proof, and dependable connection; an absolute requirement for the transfer of fluids with high pressures. The stainless steel construction has improved corrosion protection when compared to standard steel, and stainless steel tube nuts are an excellent option for applications that are exposed to moisture, chemicals, or aggressive conditions. Their robust design promotes longevity and ultimately, reliability for fluid power systems.
- Material: Stainless Steel – Provides great resistance to corrosion and durability.
- Thread Size: 1-1/16-12 – These will fit 3/4 OD tube.
- Standards Compliance: Complies with JIC/S.A.E. specifications for hydraulic fittings.
- Design: Hex design for easy tightening and secure connections.
- Application: Perfect for leak-tight connections in fluid and/or gas systems.
-
Brand: Brennan Industries – Offers a wide range of hydraulic components.
| Specification | Details |
| Adapter Type | JIC Nut |
| Description Keyword | 3/4 in JIC 37° Flare |
| End 1 Size | 3/4 in |
| End 1 Style | JIC 37° Flare |
| End 1 Thread | (SAE) 1-1/16–12 |
| Height | 1.05 |
| Length | 1.3 |
| Material | Stainless Steel |
| Weight | 0.18 lbs, 0.255 |
| Width | 1.2 |
