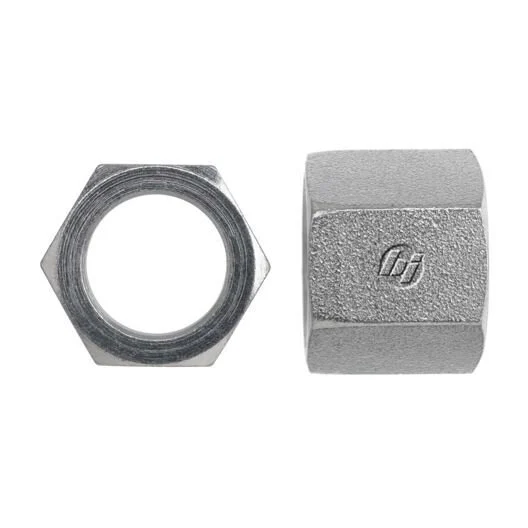

The Brennan Industries #16 JIC Tube Nut (Item ID: 0318-16) is a heavy-duty hydraulic fitting designed for secure, leak-free connections in high-pressure applications. Made from CR3-plated steel, it features a 1-5/16-12 JIC thread meeting SAE J514 specifications. Its straight shape and robust construction ensure reliable performance in demanding industrial environments.
- 1-5/16-12 JIC thread per SAE J514 standard
- Constructed from corrosion-resistant CR3-plated steel
- Straight design for straightforward installation
- Large 1.5" hex size for effective torque application
- Weighs 0.23 lbs, built for durability and strength
| Thread B1 Type | Jic Tube Nut |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 1.087 |
| Thread B1 Specification | Sae J514 |
| C Hex 1 in. | 1.5 |
| Overall Length L in. | 1.13 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight (lbs) | 0.23 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 2.543 |
