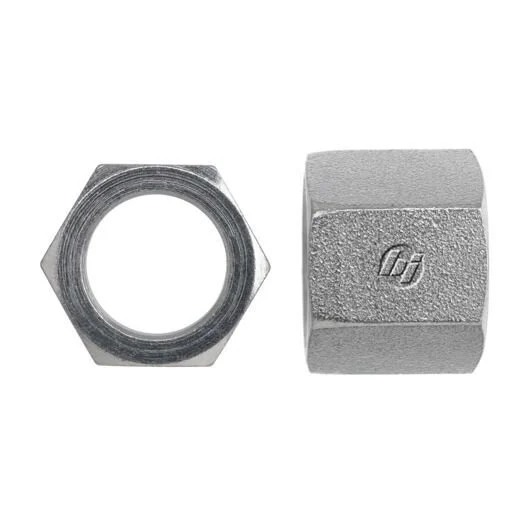

The Brennan 0318-20 JIC Tube Nut is engineered for secure and precise hose and tube connections in demanding hydraulic systems. Designed with a 1-1/4" JIC (1-5/8-12) thread size, it ensures leak-free performance and compatibility with SAE J514 standards. Manufactured from high-quality straight steel and finished with Cr3 plating, this nut delivers exceptional durability and corrosion resistance. Its robust construction makes it ideal for high-pressure applications across industrial, mobile, and fluid power equipment. A dependable solution for replacing worn components or assembling custom hydraulic hoses.
Fitting Chart- Heavy-duty 1-1/4" JIC Tube Nut (1-5/8-12)
- Built from high-strength straight steel for long service life
- Cr3 protective plating to resist corrosion and wear
- Meets SAE J514 performance and dimensional standards
- Suitable for high-pressure hydraulic and industrial applications
- Precision-machined for secure, leak-proof tube connections
| Thread B1 Type | JIC Tube Nut |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.344 |
| Thread B1 Specification | SAE J514 |
| C Hex 1 In | 2 |
| Overall Length L In | 1.23 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.55 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 4.92 |
