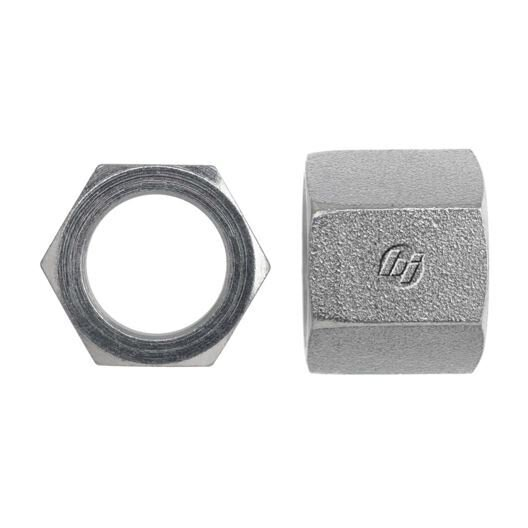

The Brennan 0318-20-SS JIC Tube Nut is a premium stainless-steel fitting designed for secure and leak-free hydraulic tube connections. Its 1-5/8-12 JIC thread ensures compatibility with SAE J514 standards, delivering reliable performance in high-pressure hydraulic systems. Built from straight stainless steel, this tube nut offers exceptional corrosion resistance, making it ideal for demanding industrial, mobile, and fluid power applications. The strong 2" hex design allows for easy tightening, while the compact straight profile ensures a precise and durable connection. Perfect for use in machinery, construction equipment, and hydraulic assemblies.
Fitting Chart- 1-5/8-12 JIC tube nut compatible with SAE J514
- Made from premium straight stainless steel for superior durability
- Corrosion-resistant construction ideal for harsh environments
- Large 2" hex for secure tightening and easy installation
- Compact straight design for reliable high-pressure connections
- Suitable for hydraulic, industrial, and heavy-equipment applications
| Thread B1 Type | JIC Tube Nut |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.344 |
| Thread B1 Specification | SAE J514 |
| C Hex 1 In | 2 |
| Overall Length L In | 1.23 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.534 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 4.92 |
