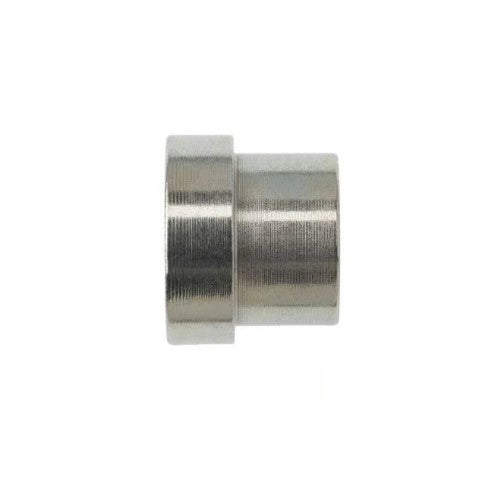

The Brennan Industries #8 JIC Tube Sleeve (Item ID: 0319-08) is a robust hydraulic fitting designed to securely connect 1/2" outer diameter tubing. Made from CR3-plated steel, it offers excellent corrosion resistance and durability. Built to meet SAE J514 standards, this straight sleeve has a compact 0.56-in. length, making it suitable for installations in tight hydraulic systems where reliable sealing is essential.
- Designed for 1/2" outer diameter tubing
- Durable CR3-plated steel construction
- Conforms to SAE J514 JIC tube sleeve standards
- Straight shape with a 0.56" overall length
- Provides secure, leak-resistant hydraulic connections
| Thread B1 Type | Jic Tube Sleeve |
| Thread B1 Size | Tube OD 1/2 |
| Thread B1 Drill In | 0.505 |
| Thread B1 Specification | Sae J514 |
| Overall Length L in. | 0.56 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| California Residents | Prop-65 Warning |
