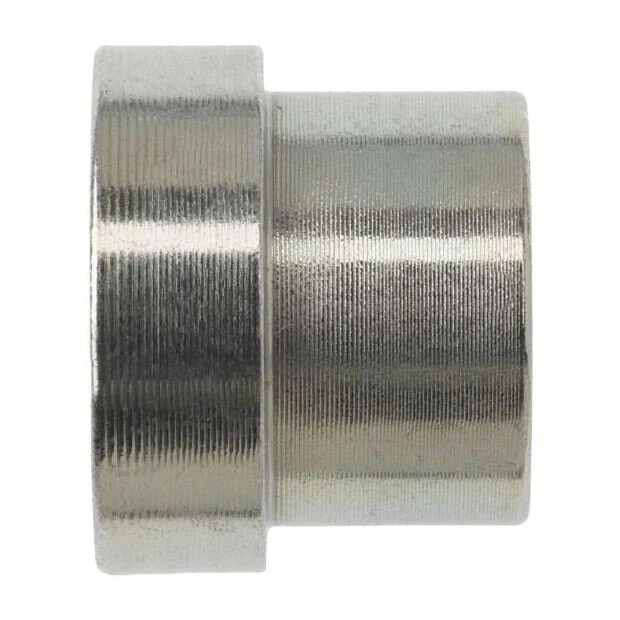

The Brennan 0319-20 JIC Tube Sleeve is designed to provide secure, leak-free sealing for hydraulic tube assemblies using a 1-1/4" JIC configuration. Engineered for 1-1/4" tube OD, it delivers excellent support when used with JIC nuts to form strong 37° flare connections. Manufactured from high-quality straight steel and finished with durable Cr3 plating, this sleeve ensures corrosion resistance and long-lasting performance. Ideal for heavy-duty hydraulic, industrial, and mobile equipment applications requiring reliable fluid transfer. A precision-machined component that meets SAE J514 specifications for consistent and dependable operation.
Fitting Chart- Precision 1-1/4" JIC tube sleeve for 1-1/4" tube OD
- Ensures strong, leak-resistant 37° flare hydraulic connections
- Made from high-strength straight steel for durability
- Cr3 plated for enhanced corrosion resistance
- Meets SAE J514 dimensional and performance standards
- Ideal for high-pressure hydraulic and industrial systems
| Thread B1 Type | JIC Tube Sleeve |
| Thread B1 Size | Tube Od 1-1/4 |
| Thread B1 Drill In | 1.26 |
| Thread B1 Specification | SAE J514 |
| Overall Length L In | 0.91 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| California Residents | Prop-65 Warning |
