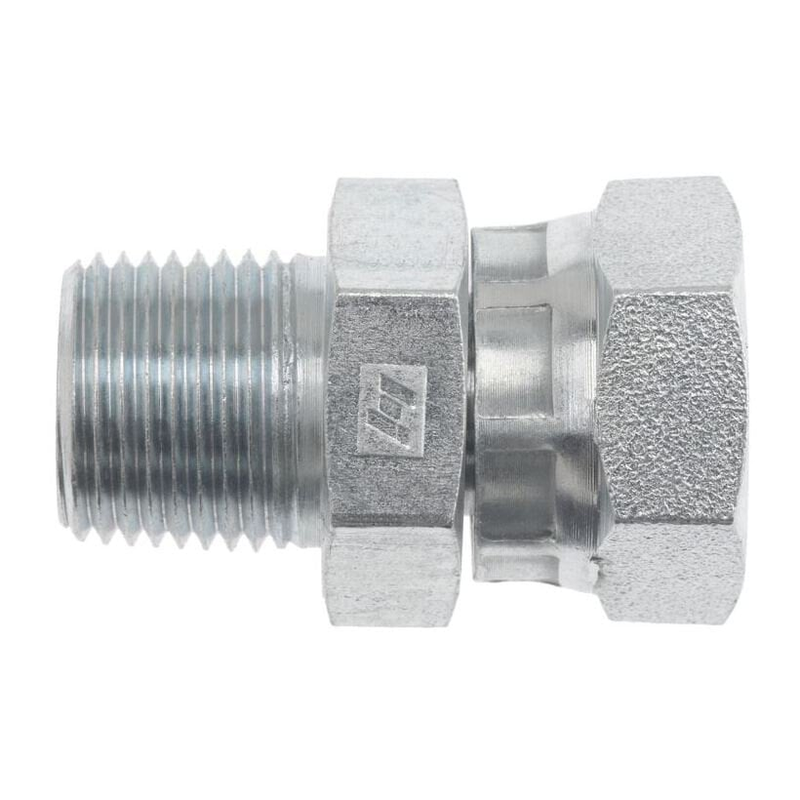

The Brennan Industries 1404-04-04 straight swivel fitting provides a secure connection between 1/4" Male NPTF and 1/4" Female NPSM swivel ports. Constructed from durable steel with a corrosion-resistant Cr3 plating, this fitting ensures long-lasting performance in demanding hydraulic systems. Its precision-machined threads and swivel design allow for easy installation and leak-free operation, even under high-pressure conditions. Rated for up to 6000 PSI, it is ideal for industrial machinery, fluid transfer systems, and hydraulic maintenance applications. The compact design ensures easy integration into tight assemblies without compromising flow.
Fitting Chart- Swivel design enables easy connection and alignment in hydraulic lines
- Strong steel construction provides durability and long-term reliability
- Cr3 plating protects against corrosion and harsh working conditions
- Straight configuration allows efficient flow and easy installation
- Rated for high-pressure applications up to 6000 PSI
- Perfect for industrial equipment, hydraulic repairs, and maintenance operations
| Specification | Details |
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female Npsm Swivel |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.21 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.688 |
| C Hex 1 In | 0.688 |
| Overall Length L In | 1.42 |
| Overall Length L2 In | 1.23 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.0867 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 0.672 |
