Haskel 16771 Seal Kit Control Valve Spool and Sleeve Replacement
The Haskel 16771 Seal Kit is a high-quality, reliable replacement kit designed specifically for control valve spool and sleeve assemblies in Haskel liquid pumps. Compatible with 5-3/4 in. liquid pumps ranging from 1.5 HP to 3 HP, this seal kit ensures effective sealing, prevents leakage, and supports smooth valve operation.
Kit Components:
O-rings and bumper-spacer designed to fit precisely and withstand operational pressures

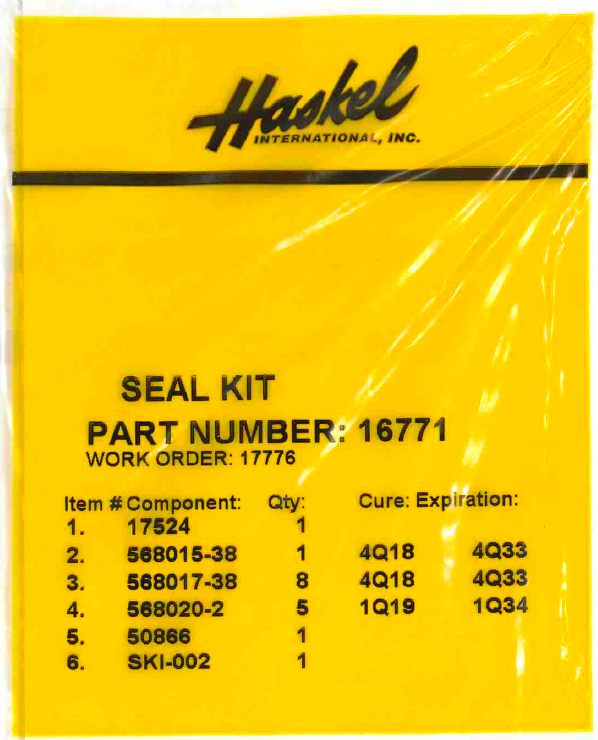

Part numbers included in the kit: 17524 (1 qty), 568015-38 (1 qty), 568017-38 (8 qty), 568020-2 (5 qty), 50866 (1 qty), SKI-002 (1 qty)
Compatibility:
Suitable for various Haskel liquid pumps, air amplifiers, and gas boosters
Models include 1.5HP, 2HP, and 3HP liquid pumps such as DSTV series, ASF series, DF series, HF series, and ASFD series
Also compatible with air amplifiers (AAD-2, AA-8, AAT-7/30, etc.) and gas boosters (AG-4, AGD-4, AGT-4, etc.)
- Prevents fluid leakage and improves valve longevity
- Easy installation with tool P/N 28584 or a simple brass rod
- Designed for durability in demanding applications
- Ideal for maintenance and repair to keep pumps operating efficiently
| Type | Seal kit for control valve spool and sleeve |
| Compatible Pump Sizes | 5-3/4 in. liquid pumps (1.5 HP, 2 HP, 2.2 HP, 3 HP) |
| Compatible Pump Models | Multiple Haskel liquid pumps, air amplifiers, gas boosters (see compatibility list) |
| Kit Components Included | O-rings, bumper-spacer, seals (see part numbers below) |
| Part Numbers in Kit | 17524 (1 qty), 568015-38 (1 qty), 568017-38 (8 qty), 568020-2 (5 qty), 50866 (1 qty), SKI-002 (1 qty) |
| Application | Control valve spool and sleeve sealing |
| Fluid Compatibility | Air, liquid fluids including CFC recovery fluids |
| Operating Temperature | Standard pump operating range (varies by pump model) |
| Installation Tools | Tool P/N 28584 or brass rod |
| Material Composition | Various high-quality seals and O-rings |
| Function | Prevents leakage, ensures smooth valve operation |
| Durability | Designed for reliable long-term use |
| Usage Note | Compatible with CFC recovery models |
