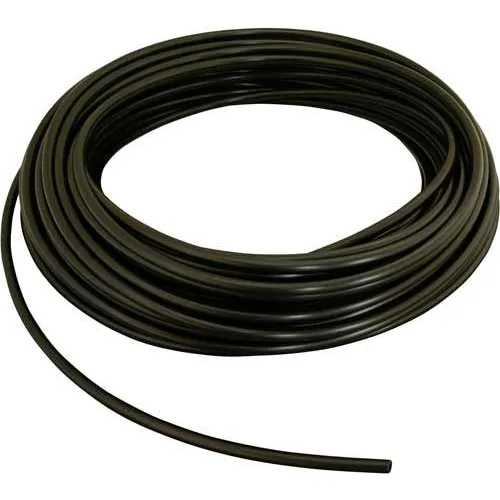

The Freelin-Wade 1A-169-01 is a high-quality black polyurethane tubing that can accomplish even the most challenging pneumatic and fluid transfer applications. The tubing's 1/4 in. outer diameter and 1/8 in. inner diameter gives a great combination of both, flexibility, durability, and pressure performance. The tubing is made from 95A durometer polyurethane, which also possesses fantastic abrasion resistance, kink resistance and compatibility for many chemicals. The tubing is ideal for industrial automation, robotics, air tools, instrumentation, and vacuum.
- Premium Polyurethane Construction: Durable and flexible material rated at 95A durometer for great resilience and memory.
- Specifications:
- Outside Diameter (OD): 1/4 in. (0.250)
- Inside Diameter (ID): 1/8 in. (0.125)
- Wall thickness: 0.063 in. (1/16) or 1.6 mm
- Operating Pressure Performance:
- 265 psi at 75F
- 105 psi at 150F
- Reliable for low and high-pressure pneumatic systems.
- Minimum Bend Radius:
- Bend Radius: 0.5 in.
- Allows for tight routing and compact installations.
- Connection Compatibility:
- Recommended for Barb or Push-In (Push to Connect) fittings.
- Non-Reinforced: Lightweight and suitable for applications that do not require reinforcement.
- Color: Black For clean, discreet routing in industrial environments.
- Compliance: Produced to standard (in) dimensions and meets standards for typical pneumatic applications.
| Type | Straight |
| Material | Polyurethane |
| OD | 0.250 in (1/4 in) |
| Durometer | 95A |
| ID | 0.125 in (1/8 in) |
| Working Pressure at 75F | 265 PSI |
| Working Pressure at 150F | 105 PSI |
| Recommended Fit | Push To Connect |
