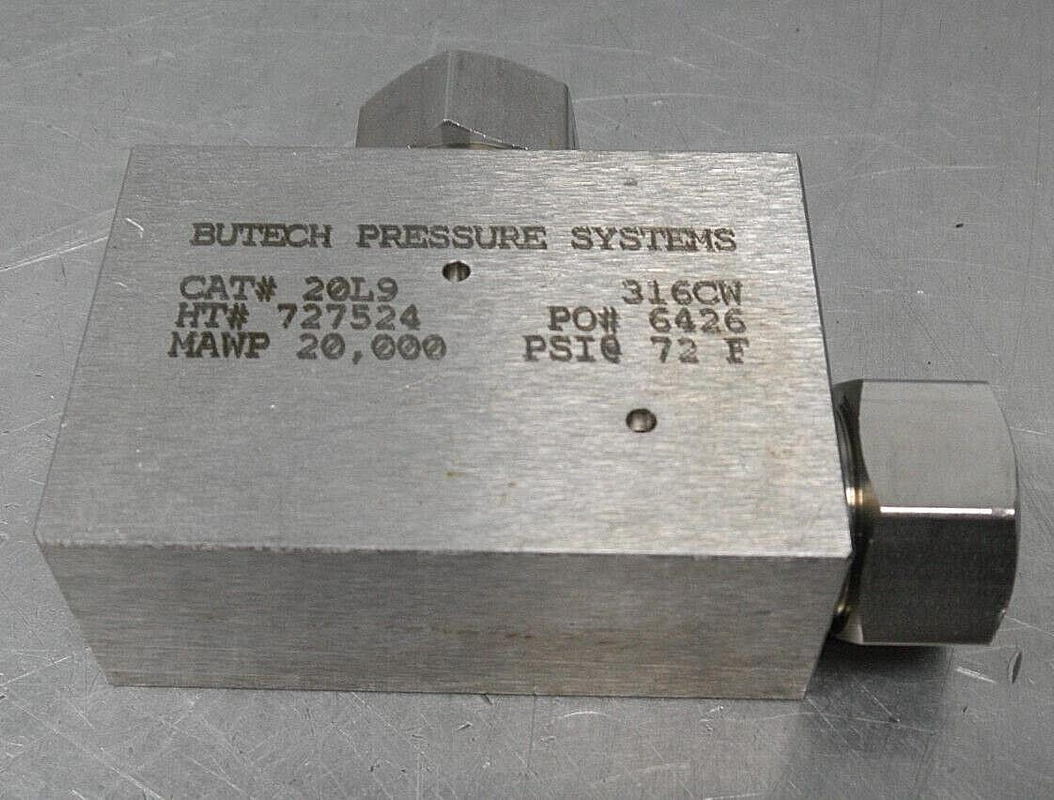

The BuTech 20L9 is a precision-engineered 90° elbow for medium-pressure tubing systems, rated up to 20,000 psi (1,380 bar). It’s made from premium 316 cold-worked stainless steel for excellent corrosion resistance in tough environments. With female cone & thread connections on both ends, it ensures a secure, leak-tight joint with 9/16" tubing. Compact and polished, it’s ideal for instrumentation panels, sampling loops, and high-pressure manifolds. The elbow is suitable for subsea and sour gas service when required.
- Rated for high pressures up to 20,000 psi
- Precision machined from 316 cold-worked stainless steel
- 9/16" female cone & thread connections on both ends
- Compact 90° design for piping flexibility
- Leak-tight seal performance in harsh conditions
| Model | 20L9 |
| Type | 90° Elbow, Tube × Tube |
| Connection Size | 9/16" OD Tube (Medium Pressure) |
| Maximum Pressure | 20,000 psi (1,380 bar) |
| Body Material | 316 Cold-Worked Stainless Steel |
| Connection Type | Female Cone & Thread |
| Finish | Polished |
| Compliance Options | Subsea / Sour Gas (Optional) |
