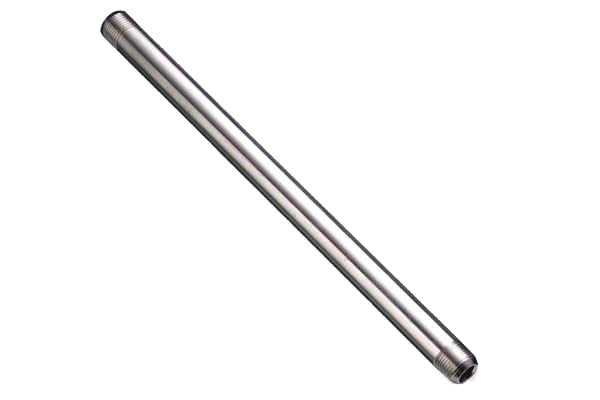

The BuTech 20N442-316 is a high-pressure stainless steel nipple designed for rugged industrial applications. Featuring a 1/4" Male Pipe (MP) thread on one end and a 2.75" long, coned-and-threaded tubing fit, it is rated for up to 20?kpsi (1,380?bar), ensuring exceptional performance under extreme pressure. Constructed from cold-worked 316 stainless steel, this fitting offers superior corrosion resistance and durability. It's ideal for use in hydraulic, pneumatic, gas, and hydrogen systems where reliability and precision are critical. Machined to precise tolerances, it maintains excellent sealing under intense stress.
- Rated to 20,000?psi (1,380?bar) working pressure
- 1/4" Male Pipe (MP) thread 2.75" coned and threaded tubing length
- Made of 316 stainless steel for high corrosion resistance
- Suitable for gas, liquid, and hydrogen service
- Pre-cut to length, with custom lengths available
| Part Number | 20N442-316 |
| Type | Nipple (high-pressure fitting) |
| Thread (one end) | 1/4" Male Pipe (MP) |
| Tubing Connection | Coned and threaded, 2.75" long |
| Material | Cold-worked 316 stainless steel |
| Pressure Rating | Up to 20,000?psi (1,380?bar) |
| Length Overall | Approx. 2.75" |
| Operating Temp. Range | Typically ?100? F to +600? F (~?73? C to +315? C), options to extend |
