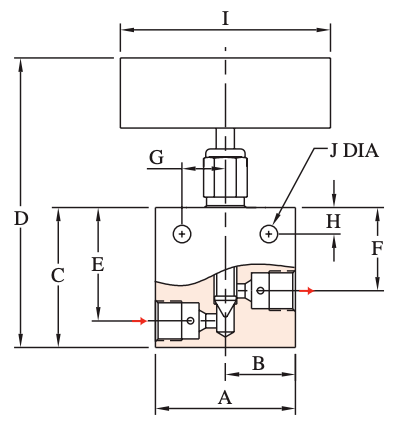

The BuTech 20UV61V-SS is a high-pressure 2-way straight needle valve engineered for precise flow control in extreme pressure environments up to 20,000 PSI. Its Tube x Tube configuration allows secure integration into demanding hydraulic, pneumatic, and chemical systems. Built from corrosion-resistant stainless steel, it ensures long-term durability and stable performance. The precision-machined needle provides smooth operation and accurate flow adjustment. Ideal for high-pressure process lines, test benches, and instrumentation circuits requiring reliable shutoff or metering control.
- 2-way straight needle valve for precise flow regulation
- Rated for 20,000 PSI high-pressure service
- 3/8" MP to 3/8" MP high-pressure connections
- Stainless steel body for corrosion resistance
- Smooth needle operation for accurate flow control
- Suitable for hydraulic, chemical, gas, and test applications
| Item ID | 20UV61V-SS |
| Type | Needle Valve (2-Way Straight) |
| Connection | 3/8" MP 3/8" MP |
| Pressure Rating | 20,000 PSI |
| Material | Stainless Steel |
| Operation | Precision Needle Control |
| Application | Hydraulic, Chemical, HP Gas, Instrumentation Systems |
| Category | Air Valves / High Pressure Valves |
