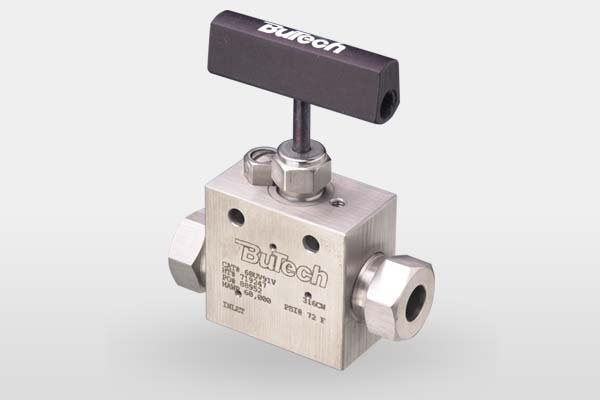

The BuTech 20UV91V Needle Valve is a high-performance precision valve designed for demanding high-pressure applications up to 20,000 PSI (1,379 bar). Manufactured from durable 316 Cold Worked Stainless Steel, this valve offers superior corrosion resistance, mechanical strength, and long service life in aggressive and high-stress environments.
This compact 2-way valve features a Tube x Tube connection, engineered for accurate flow regulation and tight shut-off control in critical systems such as chemical processing, oil & gas, offshore drilling, and hydraulic systems.
Its Vee stem design ensures fine control over media flow, while the robust body and quality fittings make it suitable for extreme pressure and temperature conditions.
- High Pressure Rating: MAWP (Maximum Allowable Working Pressure) up to 20,000 PSI @ 72F.
- Material: Made from 316 Cold Worked Stainless Steel (316CW) excellent corrosion and pressure resistance.
- Design: Compact two-way needle valve designed for accurate flow control and shut-off in high-pressure applications.
- Threaded Ports: Compatible with medium to high-pressure tubing systems.
- Applications: Suitable for use in chemical processing, offshore oil & gas, aerospace, and hydraulic systems.
Pressure Rating | 20,000 psi (1,379 bar) |
Temperature Rating | Up to 72F (22C) for Max Pressure |
Material | 316 Cold Worked Stainless Steel |
Port Configuration | 2-Way Straight |
End Connections | Tube x Tube |
Stem Type | Vee Stem (Precision Control) |
Body Marking | Body# 20UV91 |
PO# | On Body 90000575 |
HT# | 249367 |
