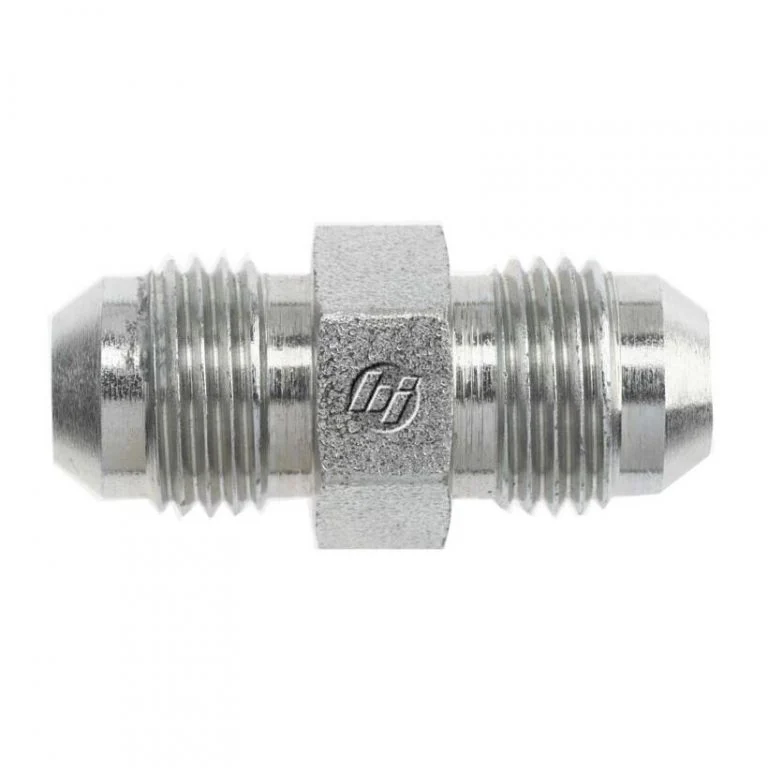

The Brennan Industries #4 MJIC x #4 MJIC Straight Hydraulic Fitting (Item ID: 2403-04-04) is a precision-engineered connector featuring male JIC SAE 37-degree flare threads on both ends. Made from durable CR3-plated steel, this fitting provides a reliable and leak-resistant connection in hydraulic systems. Designed to withstand pressures up to 7,500 PSI, its straight configuration and compact 1.37-in. length make it suitable for various industrial applications requiring robust performance and easy installation
- Features male JIC SAE 37-degree flare threads on both ends (7/16-20 size)
- Constructed from corrosion-resistant CR3-plated steel for durability
- Rated for maximum dynamic pressure up to 7,500 PSI
- Straight design allows for direct, secure connections
- Compact length of 1.37 in. for use in tight hydraulic spaces
| Thread B1 Type | Male Jic Sae 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 |
| Thread B1 Specification | Sae J514 |
| Thread B2 Type | Male Jic Sae 37 Degree Flare |
| Thread B2 Size | 7/16-20 |
| Thread B2 Drill In | 0.172 |
| Thread B2 Specification | Sae J514 |
| Body Hex in. | 0.5 |
| Overall Length L in. | 1.37 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight (lbs) | 0.0429 |
| Maximum Dynamic Pressure psi | 7500 |
| California Residents | Prop-65 Warning |
