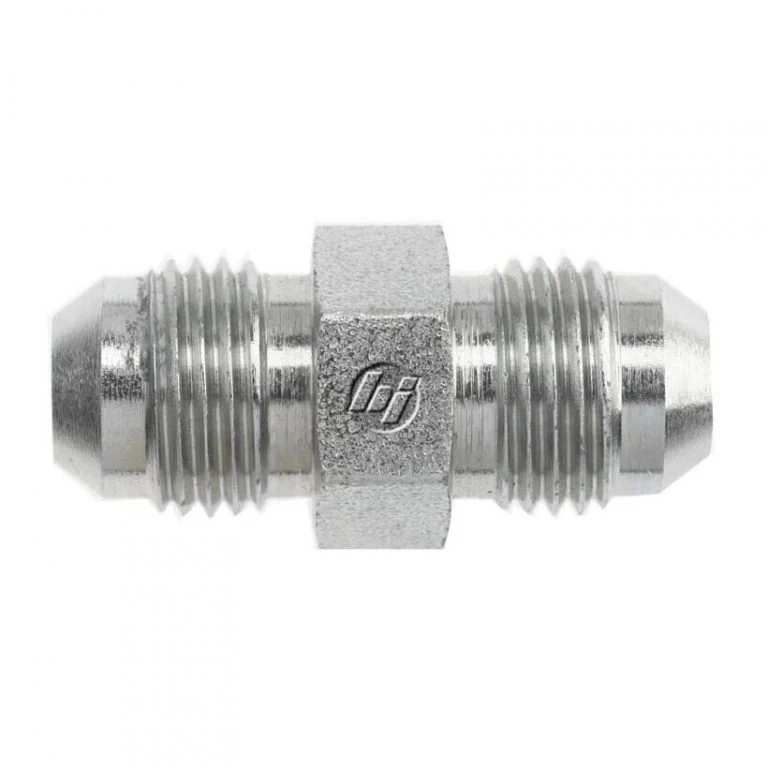

The Brennan Industries #6 MJIC x #6 MJIC Straight Hydraulic Fitting (Item ID: 2403-06-06) is a sturdy and reliable component designed for hydraulic systems. Featuring male JIC SAE 37-degree flare threads on both ends, this fitting ensures a tight, leak-free seal. Made from CR3-plated steel, it offers excellent corrosion resistance and durability. With a pressure rating of up to 6,000 PSI, this straight fitting measures 1.41 in. in length, making it a practical choice for many hydraulic applications.
- Equipped with male JIC SAE 37-degree flare threads (9/16-18) on both ends
- Made from corrosion-resistant CR3-plated steel for long-lasting use
- Rated for dynamic pressure up to 6,000 PSI
- Straight design facilitates easy installation and secure connections
- Compact length of 1.41 in. ideal for space-constrained setups
| Thread B1 Type | Male Jic Sae 37 Degree Flare |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.297 |
| Thread B1 Specification | Sae J514 |
| Thread B2 Type | Male Jic Sae 37 Degree Flare |
| Thread B2 Size | 9/16-18 |
| Thread B2 Drill In | 0.297 |
| Thread B2 Specification | Sae J514 |
| Body Hex in. | 0.625 |
| Overall Length L in. | 1.41 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight (lbs) | 0.062 |
| Maximum Dynamic Pressure psi | 6000 |
| California Residents | Prop-65 Warning |
