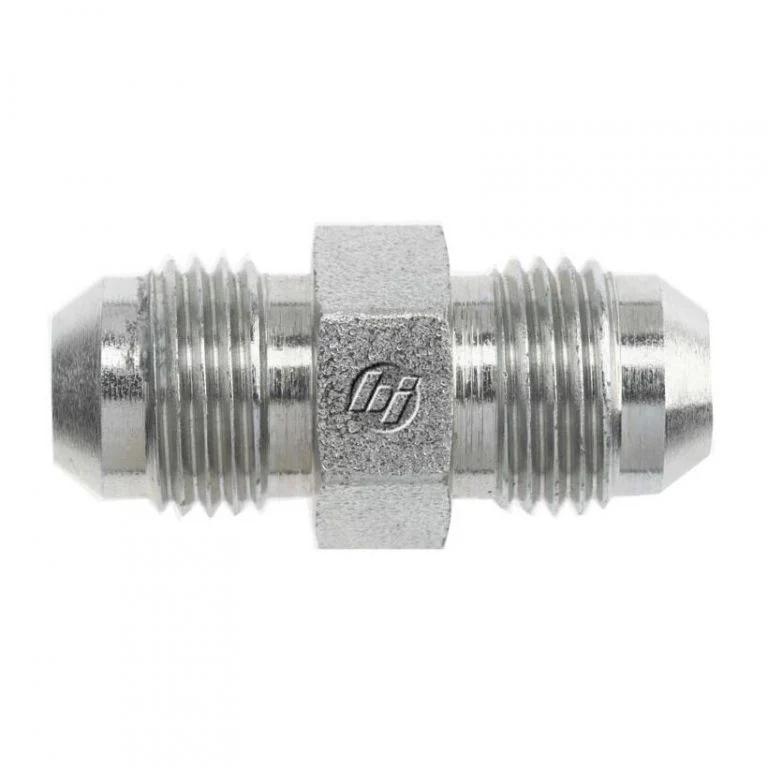

This straight hydraulic fitting features male JIC SAE 37-degree flare threads on both ends, offering reliable and leak-free connections. Crafted from forged steel with a corrosion-resistant Cr3 plating, it ensures durability and long service life in demanding environments. Designed for high-pressure hydraulic systems, this fitting can withstand pressures up to 6000 PSI. Its compact and robust construction makes it suitable for various industrial and mobile hydraulic applications.
- Straight fitting with male JIC SAE 37-degree flare threads on both ends
- Forged steel construction for high strength and durability
- Corrosion-resistant Cr3 plating for enhanced protection
- Supports maximum dynamic pressure up to 6000 PSI
- Compact design for easy installation in tight spaces
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 9/16-18 |
| Thread B2 Drill In | 0.297 |
| Thread B2 Specification | SAE J514 |
| Body Hex in. | 0.812 |
| Overall Length L in. | 1.52 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight lbs | 0.1155 |
| Maximum Dynamic Pressure psi | 6000 |
