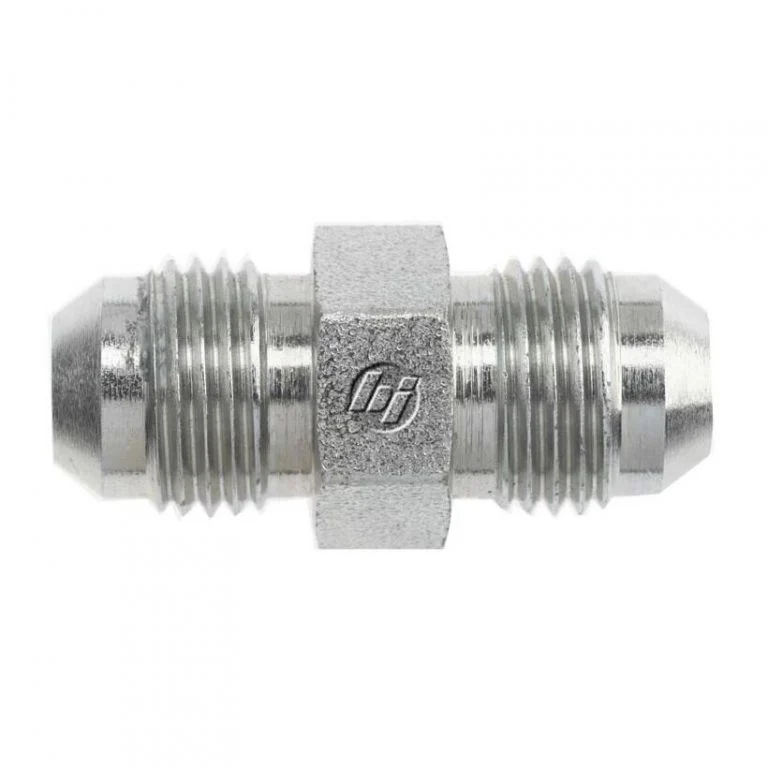

This straight hydraulic fitting is made from robust steel for heavy-duty performance. It features male JIC (SAE 37 flare) threads on both ends for secure, leak-resistant connections. Designed in a compact, straight profile, it fits tightly in hydraulic systems. Built to SAE J514 standards, it supports pressures up to 6000 psi and reliably operates under vacuum. Ideal for rugged industrial and mobile hydraulic applications.
- Heavy-duty steel construction for strength and durability
- Male JIC SAE 37 flare threads on both ends (3/4-16)
- Meets SAE J514 / JIC standards
- Compact straight design, 1.62" in length
- Works under vacuum and pressure up to 6000 psi
- Prop-65 warning for California compliance
| Thread B1 Type | Male JIC SAE 37 Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 in. |
| Thread B1 Spec | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 in. |
| Thread B2 Spec | SAE J514 |
| Body Hex in. | 0.812 |
| Overall Length | 1.62 in. |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Weight | 0.1312 lbs |
| California Residents | Prop-65 Warning |
| Cubic in. Volume | 1.068 in |
