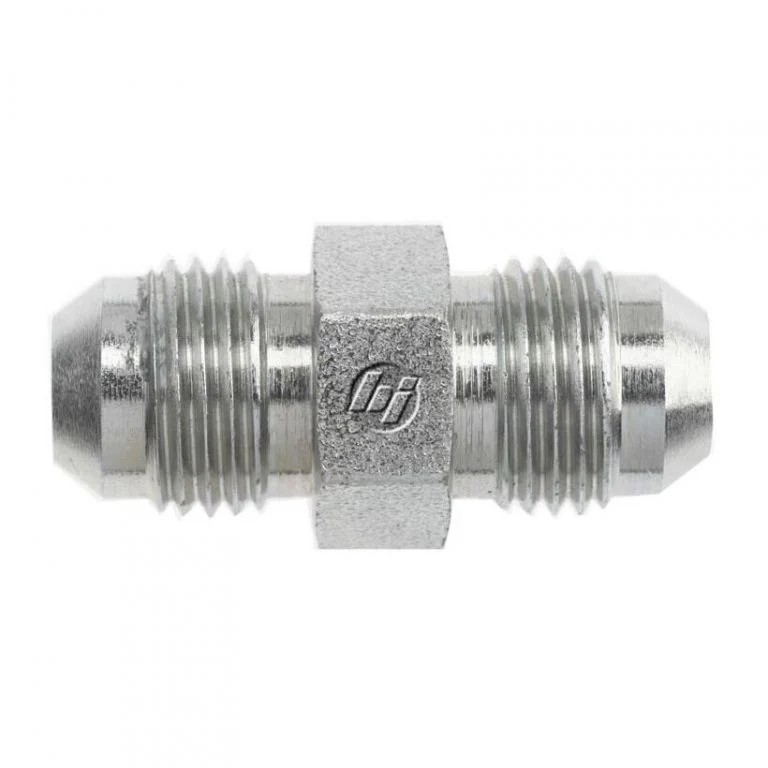

This Brennan Industries #10 MJIC Straight Hydraulic Fitting is manufactured from high-strength steel with a durable Cr3 plating for enhanced corrosion resistance. Featuring Male JIC SAE 37 Degree Flare threads on both ends, it ensures a secure and leak-proof hydraulic connection. Designed to handle up to 5000 PSI dynamic pressure, this fitting is perfect for demanding hydraulic systems. Its straight design and precise specifications meet SAE J514 standards for reliable performance.
- Made from robust steel with corrosion-resistant Cr3 plating
- #10 Male JIC SAE 37 Degree Flare threads on both ends
- Compliant with SAE J514 specifications
- Maximum dynamic pressure rating of 5000 PSI
- Overall length of 1.88 in. with 0.938-in. body hex
- Includes Prop-65 warning for California residents
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 7/8-14 |
Thread B1 Drill In | 0.484 |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male JIC SAE 37 Degree Flare |
Thread B2 Size | 7/8-14 |
Thread B2 Drill In | 0.484 |
Thread B2 Specification | SAE J514 |
Body Hex in. | 0.938 |
Overall Length L in. | 1.88 |
Shape | Straight |
Body Material | Steel |
Raw Material Type | Straight Steel |
Plating | Cr3 |
Weight lbs | 0.2 |
Maximum Dynamic Pressure psi | 5000 |
California Residents | Prop-65 Warning |
