Brennan Industries of Texas

2403-12-08

2403-12-08

Regular price $14.03 USD
Regular price Sale price $14.03 USD
Sale Sold out
  • Manufacturer Part #2403-12-08
  • Unit Size 1
  • Brand Brennan Industries of Texas

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

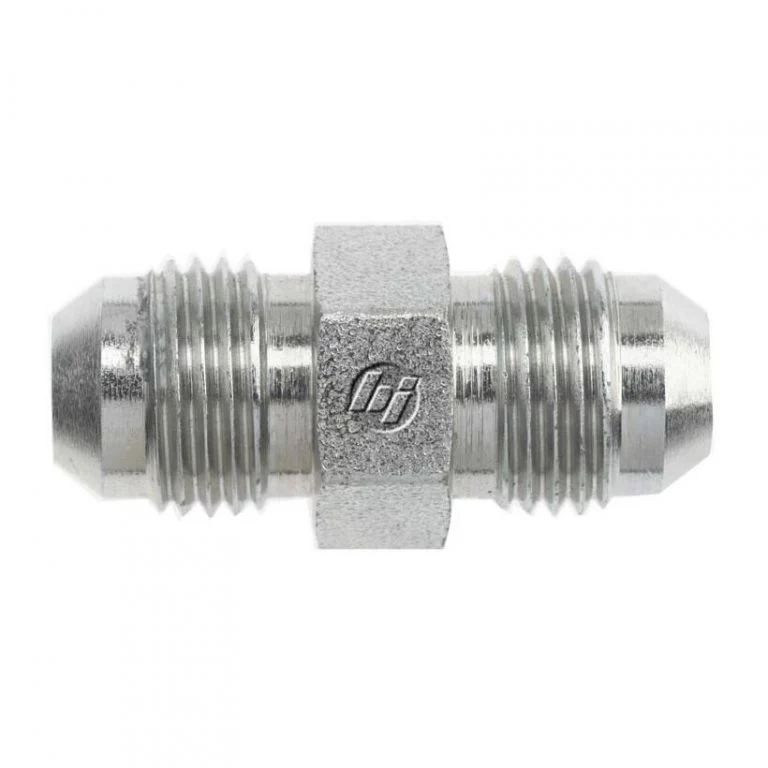

This Brennan Industries #12 MJIC x #8 MJIC Straight Hydraulic Fitting is made from durable steel with corrosion-resistant Cr3 plating for long-lasting performance. It features Male JIC SAE 37 Degree Flare threads in two different sizes, ensuring a reliable, leak-proof connection between hydraulic components. Rated for a maximum dynamic pressure of 5000 PSI, this fitting is designed to meet SAE J514 standards and withstand demanding hydraulic applications.

  • Constructed from strong steel with Cr3 corrosion-resistant plating
  • Male JIC SAE 37 Degree Flare threads: #12 (1-1/16-12) x #8 (3/4-16)
  • Meets SAE J514 specifications for hydraulic fittings
  • Supports dynamic pressure up to 5000 PSI
  • Straight fitting design with 1.95-in. overall length and 1.125-in. body hex
  • Includes Prop-65 warning for California residents
Thread B1 Type Male JIC SAE 37 Degree Flare
Thread B1 Size 1-1/16-12
Thread B1 Drill In 0.609 in.
Thread B1 Specification SAE J514
Thread B2 Type Male JIC SAE 37 Degree Flare
Thread B2 Size 3/4-16
Thread B2 Drill In 0.391 in.
Thread B2 Specification SAE J514
Body Hex in. 1.125
Overall Length L in. 1.95
Shape Straight
Body Material Steel
Raw Material Type Straight Steel
Plating Cr3
Weight lbs 0.256
Maximum Dynamic Pressure psi 5000
California Residents Prop-65 Warning
