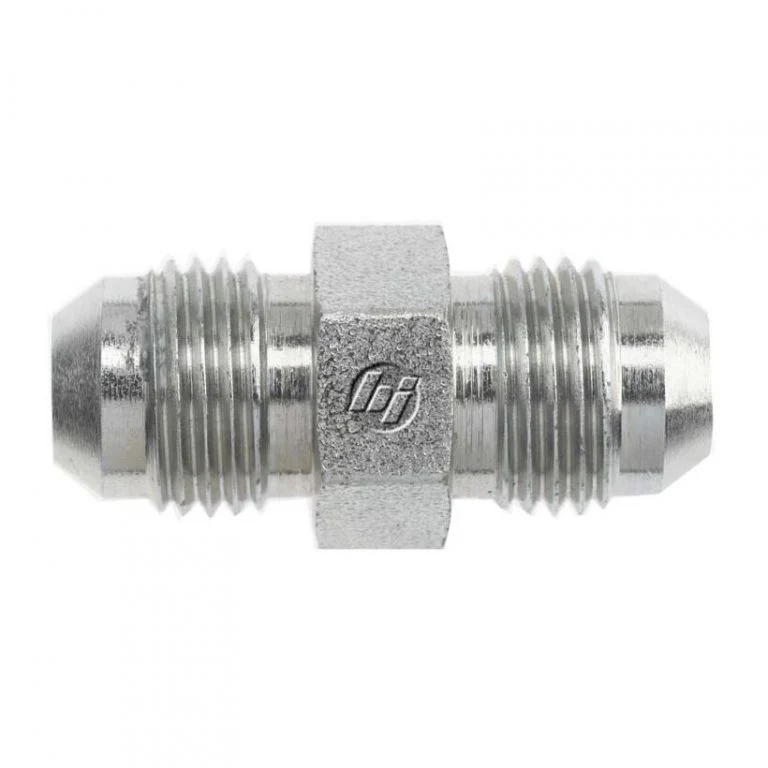

The Brennan Industries #12 MJIC Straight Hydraulic Fitting is precision-engineered from durable steel with corrosion-resistant Cr3 plating for enhanced longevity. Featuring Male JIC SAE 37 Degree Flare threads on both ends of size 1-1/16-12, it ensures a secure, leak-free connection. Designed to handle up to 5000 PSI dynamic pressure, this fitting meets SAE J514 standards, making it ideal for high-pressure hydraulic applications.
- Made of high-strength steel with Cr3 corrosion-resistant plating
- Male JIC SAE 37 Degree Flare threads, size 1-1/16-12 on both ends
- Complies with SAE J514 industry specifications
- Supports a maximum dynamic pressure of 5000 PSI
- Straight design with 2.16-in. overall length and 1.125-in. body hex
- Includes Prop-65 warning for California residents
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-1/16-12 |
| Thread B2 Drill In | 0.609 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.125 |
| Overall Length L In | 2.16 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.306 |
| Maximum Dynamic Pressure Psi | 5000 |
| California Residents | Prop-65 Warning |
