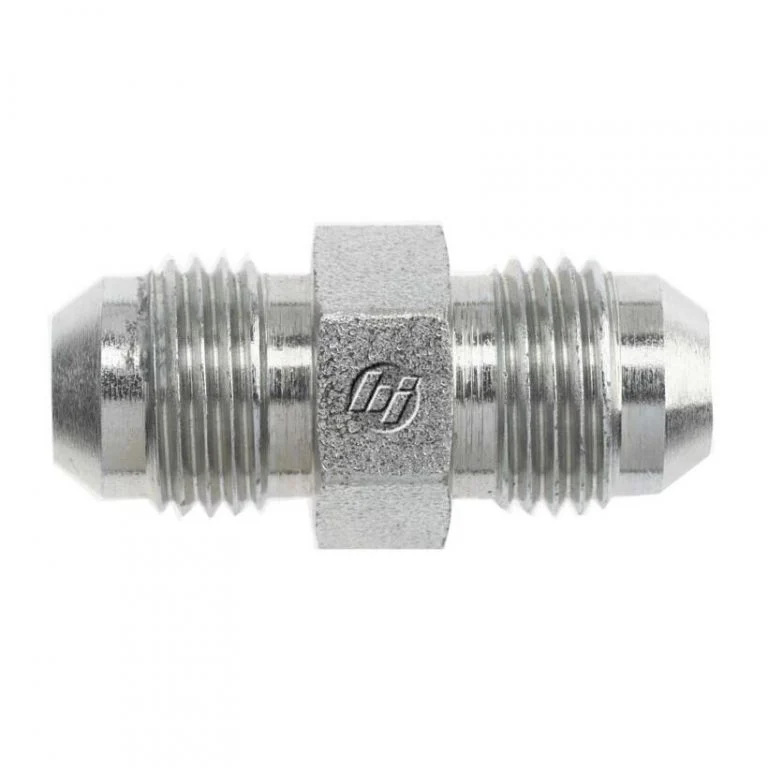

The Brennan Industries #16 MJIC x #16 MJIC Straight Hydraulic Fitting is built from rugged steel and finished with Cr3 plating for superior corrosion resistance. With Male JIC SAE 37 Degree Flare threads (1-5/16-12) on both ends, it ensures a strong, leak-free connection. This fitting is engineered to handle dynamic pressures up to 4000 PSI and meets SAE J514 specifications, making it ideal for high-pressure hydraulic systems.
- Heavy-duty steel construction with Cr3 plating for corrosion resistance
- Male JIC SAE 37 Flare threads, 1-5/16-12 on both ends
- Rated for up to 4000 PSI dynamic pressure
- Meets SAE J514 industry standard
- Straight design with 2.25" length and 1.375" body hex
- Prop-65 warning applicable for California residents
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 0.844 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-5/16-12 |
| Thread B2 Drill In | 0.844 in. |
| Thread B2 Specification | SAE J514 |
| Body Hex in. | 1.375 |
| Overall Length L in. | 2.25 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight lbs | 0.45 |
| Maximum Dynamic Pressure psi | 4000 |
| California Residents | Prop-65 Warning |
