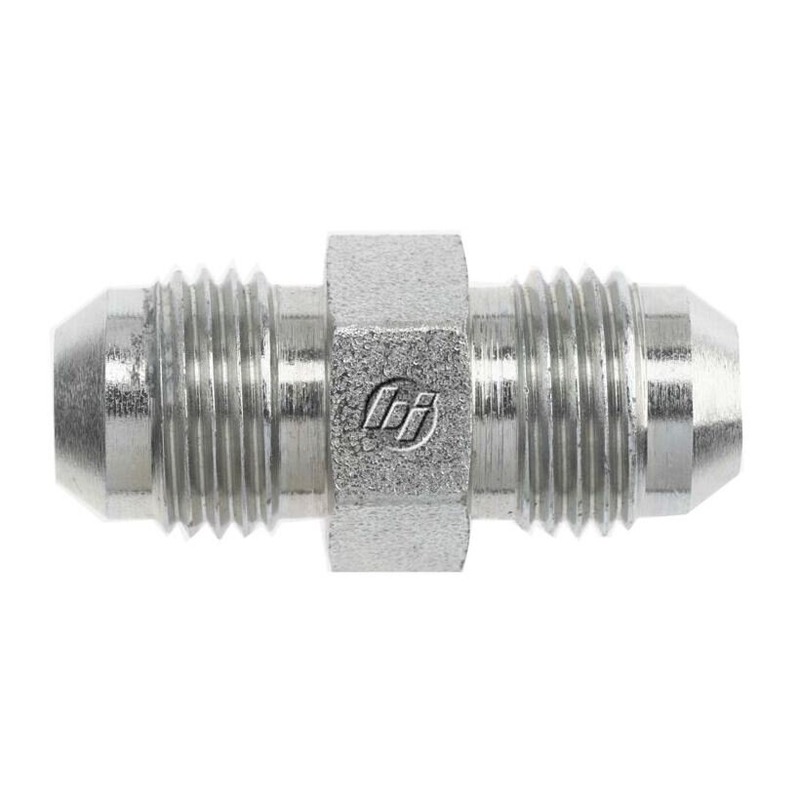

The1-1/4" MJIC x 1-1/4" MJIC Straight Adapter from Brennan Industries of Texas is a heavy-duty hydraulic fitting engineered for high-pressure performance. Featuring 1-5/8-12 Male JIC 37 Flare connections on both ends, this adapter is built to precise SAE J514 standards for leak-free operation. Constructed from durable straight steel and finished with Cr3 plating, it ensures long-lasting corrosion resistance. With a pressure rating of up to 4000 PSI, this fitting is ideal for demanding hydraulic, industrial, and mobile equipment applications. Its straight design and large 1.688" hex allow easy installation even in rugged environments.
Fitting Chart- 1-1/4" Male JIC 37 Flare connections on both ends
- Built to SAE J514 specifications for reliable, leak-free sealing
- Strong straight steel construction designed for high-pressure systems
- Cr3 plating improves corrosion and wear resistance
- Rated for up to 4000 PSI dynamic pressure
- Easy installation with 1.688" body hex and 2.43" overall length
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.078 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-5/8-12 |
| Thread B2 Drill In | 1.078 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.688 |
| Overall Length L In | 2.43 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.7067 |
| Maximum Dynamic Pressure Psi | 4000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 6.924 |
