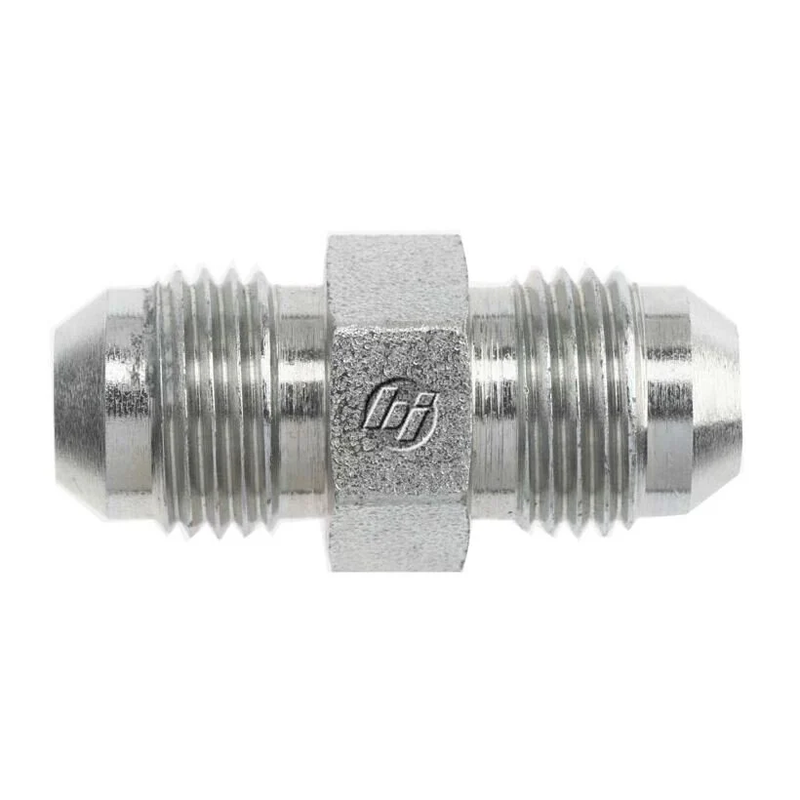

The 2403-20-20-SS is a robust straight hydraulic fitting designed to connect 1-1/4" Male JIC to 1-1/4" Male JIC with precision 37° flare connections. Constructed from high-quality stainless steel, it provides excellent corrosion resistance and long-lasting durability for high-pressure hydraulic systems. With a maximum dynamic pressure of 4000 PSI, it is suitable for demanding industrial, mobile, and fluid power applications. Its compact 2.43-inch length and 1.688-inch body hex ensure easy installation in tight spaces. Ideal for systems that require reliable, leak-resistant connections in harsh environments.
Fitting Chart- 1-1/4" MJIC x 1-1/4" MJIC straight hydraulic adapter
- Constructed from stainless steel for corrosion resistance and durability
- Precision 37° flare threads compliant with SAE J514 standards
- Supports up to 4000 PSI dynamic pressure for high-pressure systems
- 1.688" body hex and 2.43" overall length for easy installation
- Suitable for industrial, mobile, and heavy-duty hydraulic applications
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.078 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-5/8-12 |
| Thread B2 Drill In | 1.078 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.688 |
| Overall Length L In | 2.43 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.665 |
| Maximum Dynamic Pressure Psi | 4000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 6.924 |
