Brennan Industries of Texas

2404-04-02

2404-04-02

Regular price $3.15 USD
Regular price Sale price $3.15 USD
Sale Sold out
  • Manufacturer Part #2404-04-02
  • Unit Size 1
  • Brand Brennan Industries of Texas

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

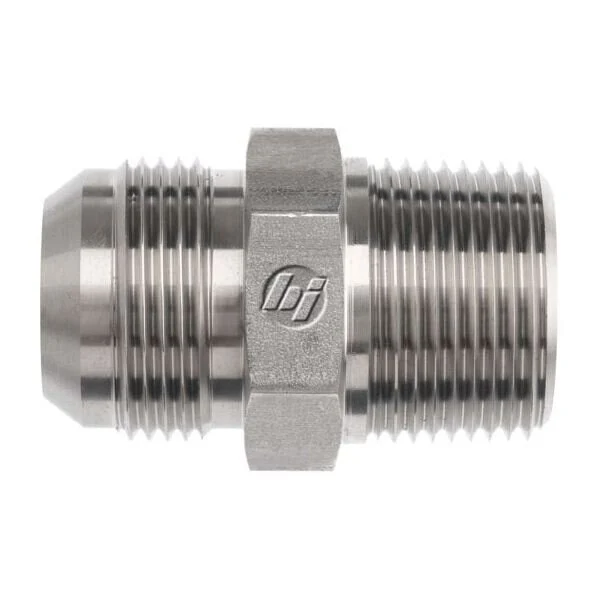

The Brennan Industries #4 MJIC x 1/8" MNPT Straight Hydraulic Fitting is a high-performance steel connector designed for demanding hydraulic systems. Featuring a 37 Male JIC SAE Flare (7/16-20) to a 1/8"-27 Male NPTF thread, it ensures a tight, leak-resistant seal. With Cr3 plating for corrosion protection and a pressure rating of up to 6000 PSI, this fitting is ideal for high-pressure applications and meets SAE J514 and J476 standards.

  • Steel body with Cr3 plating for enhanced corrosion resistance
  • Male JIC SAE 37 Flare (7/16-20) x Male NPTF (1/8-27) configuration
  • Rated for up to 6000 PSI dynamic pressure
  • Meets SAE J514 and SAE J476 specifications
  • Compact straight design with 1.22" overall length and 0.5" body hex
  • Includes Prop-65 warning for California residents
Thread B1 Type Male JIC SAE 37 Degree Flare
Thread B1 Size 7/16-20
Thread B1 Drill In 0.172 in.
Thread B1 Specification SAE J514
Thread B2 Type Male NPTF
Thread B2 Size 1/8-27
Thread B2 Drill In 0.188 in.
Thread B2 Specification SAE J476
Body Hex in. 0.5
Overall Length L in. 1.22
Shape Straight
Body Material Steel
Raw Material Type Straight Steel
Plating Cr3
Weight lbs 0.0383
Maximum Dynamic Pressure psi 6000
California Residents Prop-65 Warning
