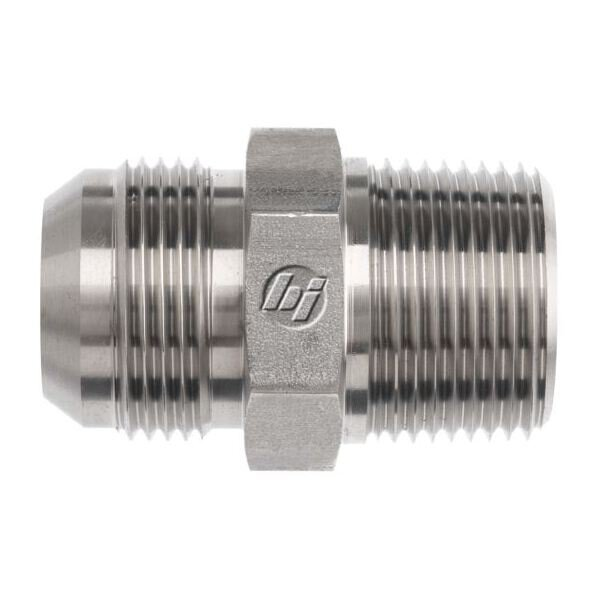

The Brennan Industries 2404-04-02-SS hydraulic fitting provides a precise and secure connection between 1/4" Male JIC (37° flare) and 1/8" Male NPTF ports. Manufactured from high-quality stainless steel, it offers superior strength and excellent corrosion resistance, making it ideal for harsh, high-moisture, or chemical environments. With a maximum dynamic pressure rating of 6000 PSI, this fitting delivers reliable, leak-free performance in demanding hydraulic applications. Its straight design allows easy installation in tight or compact hydraulic layouts. A dependable choice for industrial machinery, fluid transfer systems, and high-pressure equipment maintenance.
Fitting Chart- Provides a secure, leak-tight connection between JIC flare and NPTF threaded ports
- Stainless steel construction ensures superior corrosion resistance and long-term durability
- Designed for high-pressure hydraulic systems with a 6000 PSI performance rating
- Straight design enables easy integration into various hydraulic setups and machinery
- Precision-machined threads support stable, vibration-resistant connections
- Ideal for demanding environments including industrial, marine, chemical, and high-pressure applications
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/8-27 |
| Thread B2 Drill In | 0.188 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.5 |
| Overall Length L In | 1.22 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.037 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 0.305 |
