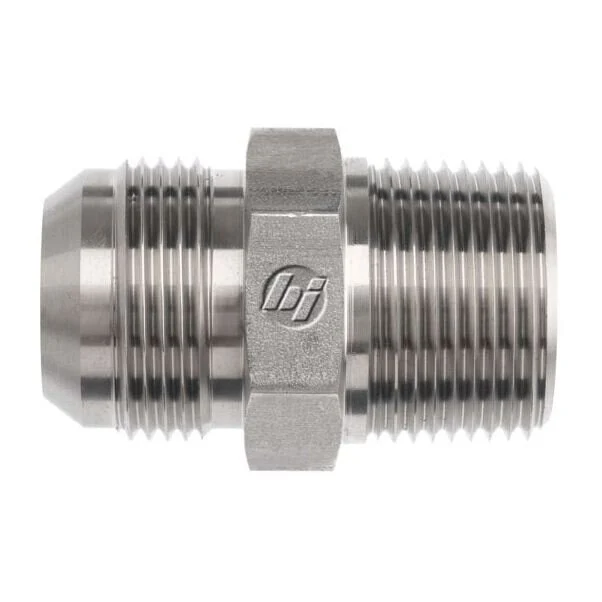

The Brennan Industries #4 MJIC x 1/4" MNPT Straight Hydraulic Fitting is built from high-strength steel and finished with corrosion-resistant Cr3 plating. This fitting connects a 7/16-20 Male JIC SAE 37 Flare to a 1/4"-18 Male NPTF thread, offering a secure, leak-free hydraulic connection. Rated for up to 6000 PSI, it meets SAE J514 and J476 specifications, making it ideal for high-pressure industrial applications.
- Durable steel construction with Cr3 plating for corrosion resistance
- Male JIC SAE 37 Flare (7/16-20) to Male NPTF (1/4-18) configuration
- Rated for a maximum dynamic pressure of 6000 PSI
- Complies with SAE J514 and SAE J476 standards
- Straight design with 1.42" overall length and 0.562" body hex
- Includes Prop-65 warning for California residents
| Thread B1 Type | Male Jic Sae 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 |
| Thread B1 Specification | Sae J514 |
| Thread B2 Type | Male Nptf |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | Sae J476 |
| Body Hex In | 0.562 |
| Overall Length L In | 1.42 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.0589 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
