Brennan Industries of Texas

2404-04-08

2404-04-08

Regular price $10.93 USD
Regular price Sale price $10.93 USD
Sale Sold out
  • Manufacturer Part #2404-04-08
  • Unit Size 1
  • Brand Brennan Industries of Texas

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

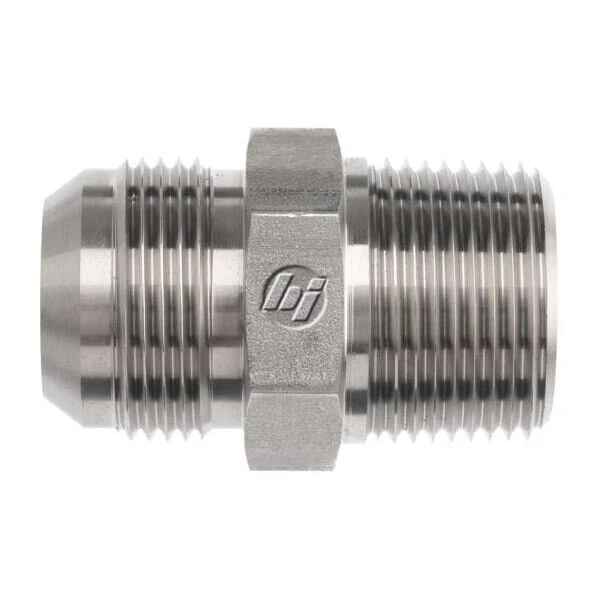

The Brennan Industries #4 MJIC x 1/2" MNPT Straight Hydraulic Fitting is constructed from high-quality steel and finished with Cr3 plating to ensure long-term corrosion resistance. It features a 7/16-20 Male JIC SAE 37 Flare connection on one end and a 1/2"-14 Male NPTF thread on the other, delivering a secure and leak-free hydraulic interface. Designed for demanding conditions, it supports pressures up to 6000 PSI and complies with SAE J514 and J476 specifications.

  • Strong steel body with corrosion-resistant Cr3 plating
  • Male JIC SAE 37 Flare (7/16-20) x Male NPTF (1/2-14) configuration
  • High-pressure rating up to 6000 PSI
  • Complies with SAE J514 and SAE J476 standards
  • Straight fitting design with 1.68" overall length and 0.875" body hex
  • Includes Prop-65 warning for California residents
Thread B1 Type Male Jic Sae 37 Degree Flare
Thread B1 Size 7/16-20
Thread B1 Drill In 0.172
Thread B1 Specification Sae J514
Thread B2 Type Male Nptf
Thread B2 Size 1/2-14
Thread B2 Drill In 0.531
Thread B2 Specification Sae J476
Body Hex In 0.875
Overall Length L In 1.68
Shape Straight
Body Material Steel
Raw Material Type Straight Steel
Plating Cr3
Weight Lbs 0.175
Maximum Dynamic Pressure Psi 6000
California Residents Prop-65 Warning
