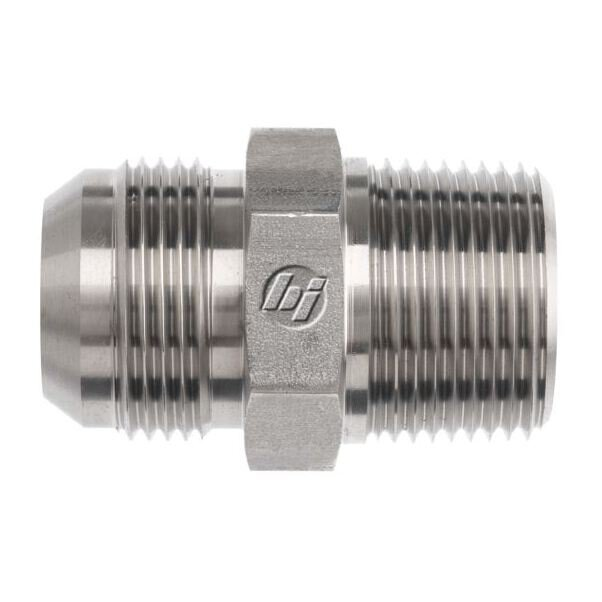

The 2404-04-12 straight hydraulic adapter is engineered for reliable performance in high-pressure fluid systems. It features a 1/4" Male JIC 37° flare connection paired with a 3/4" Male NPTF thread, ensuring secure, leak-resistant hydraulic line integration. Made from high-strength straight steel with Cr3 plating, it offers excellent corrosion protection and long-term durability. Precision machining to SAE J514 and J476 standards ensures compatibility with a wide range of hydraulic equipment. Ideal for industrial, agricultural, and heavy-machinery applications requiring robust fluid transfer.
Fitting Chart- 1/4" MJIC x 3/4" MNPT straight adapter for versatile hydraulic connections
- High-pressure capability up to 5500 PSI
- Cr3-plated steel construction enhances corrosion resistance
- Manufactured to SAE J514 & J476 specifications
- Precision-machined threads ensure secure, leak-free sealing
- Suitable for industrial, automotive, and heavy-equipment hydraulic systems
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 3/4-14 |
| Thread B2 Drill In | 0.719 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.125 |
| Overall Length L In | 1.75 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.205 |
| Maximum Dynamic Pressure Psi | 5500 |
