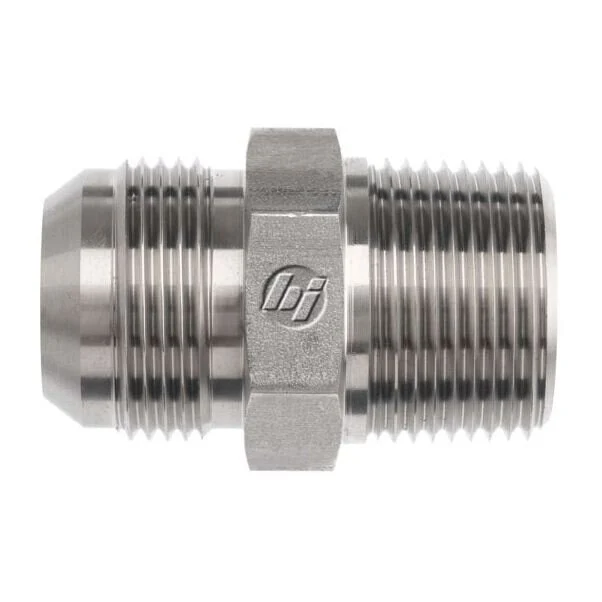

The Brennan Industries #6 MJIC x 1/4" MNPT Straight Hydraulic Fitting is engineered from strong steel with Cr3 plating for excellent corrosion resistance and durability. It features a 9/16-18 Male JIC SAE 37 Flare on one end and a 1/4"-18 Male NPTF thread on the other, creating a reliable, high-pressure connection. With a maximum dynamic pressure of 6000 PSI and compliance with SAE J514 and J476 standards, this fitting is ideal for a wide range of hydraulic applications.
- Steel body with corrosion-resistant Cr3 plating
- 9/16-18 Male JIC SAE 37 Flare x 1/4"-18 Male NPTF connection
- Rated for high-pressure applications up to 6000 PSI
- Meets SAE J514 (JIC) and SAE J476 (NPTF) specifications
- Straight fitting with 1.43" overall length and 0.625" body hex
- Includes Prop-65 warning for California residents
| Thread B1 Type | Male Jic Sae 37 Degree Flare |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.297 |
| Thread B1 Specification | Sae J514 |
| Thread B2 Type | Male Nptf |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | Sae J476 |
| Body Hex In | 0.625 |
| Overall Length L In | 1.43 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.0638 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
