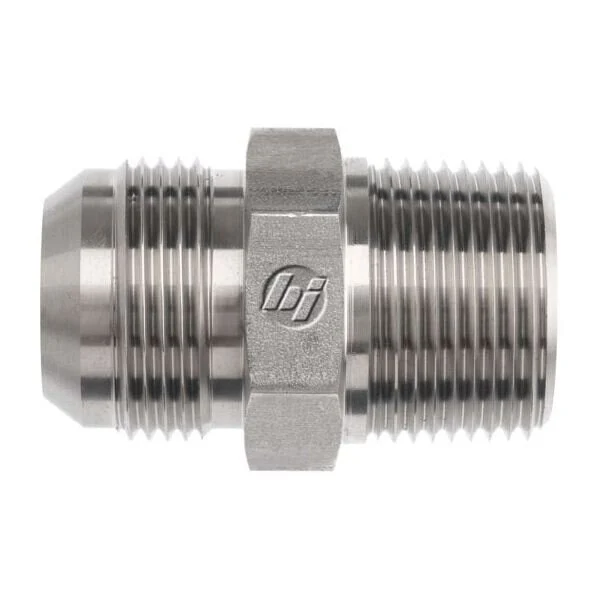

The Brennan Industries #8 MJIC x 1/2" MNPT Straight Hydraulic Fitting is designed for durable performance in high-pressure hydraulic systems. Made from high-strength steel with a corrosion-resistant Cr3 plating, it features a 3/4-16 Male JIC SAE 37 Flare and a 1/2"-14 Male NPTF thread. Rated up to 6000 PSI and meeting SAE J514 and J476 standards, this fitting ensures secure and leak-proof connections in demanding environments.
- Robust steel construction with Cr3 plating for corrosion protection
- Male JIC SAE 37 Flare (3/4-16) to Male NPTF (1/2-14) configuration
- Maximum dynamic pressure rating: 6000 PSI
- Complies with SAE J514 and SAE J476 industry standards
- Straight design with 1.79" overall length and 0.875" body hex
- Includes Prop-65 warning for California residents
| Thread B1 Type | Male Jic Sae 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.39 |
| Thread B1 Specification | Sae J514 |
| Thread B2 Type | Male Nptf |
| Thread B2 Size | 1/2-14 |
| Thread B2 Drill In | 0.531 |
| Thread B2 Specification | Sae J476 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.79 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.17 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
