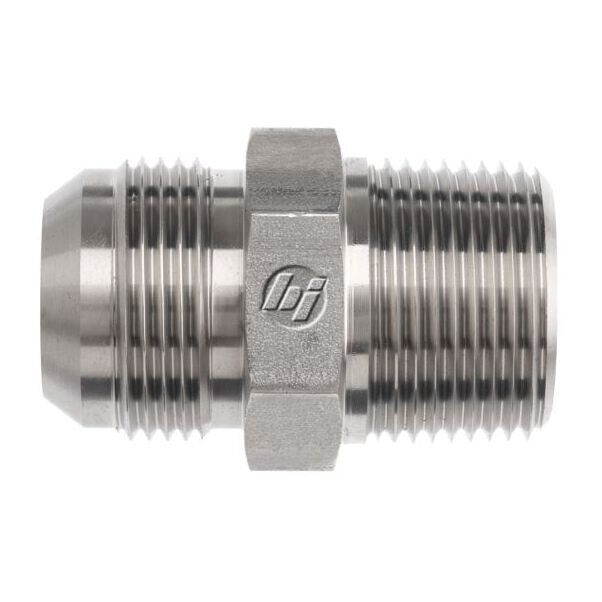

The Brennan Industries 2404-08-08-SS straight hydraulic fitting offers a reliable and precise connection between 1/2" Male JIC (37° flare) and 1/2" Male NPTF threads. Made from high-grade stainless steel, it provides exceptional corrosion resistance, making it ideal for harsh, high-moisture, or chemical-exposed environments. Designed for demanding applications with a maximum dynamic pressure of 6000 PSI, this fitting delivers strong, leak-free performance. Its precision-machined threads and flare surface ensure a secure, vibration-resistant seal. Suitable for industrial equipment, hydraulic systems, marine use, and high-pressure fluid handling.
Fitting Chart- Provides a strong and leak-tight transition between JIC flare and NPTF threaded connections
- Stainless steel construction ensures superior durability and corrosion protection
- Rated for high-pressure systems up to 6000 PSI, suitable for demanding applications
- Straight design supports smooth fluid flow and easy integration into hydraulic lines
- Precision-machined threads ensure reliable sealing even under vibration or heavy load
- Ideal for industrial machinery, marine systems, chemical environments, and hydraulic repairs
| Specification | Details |
| Thread B1 Type | Female JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.25 |
| Overall Length L In | 1.68 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.2677 |
| California Residents | Prop-65 Warning |
