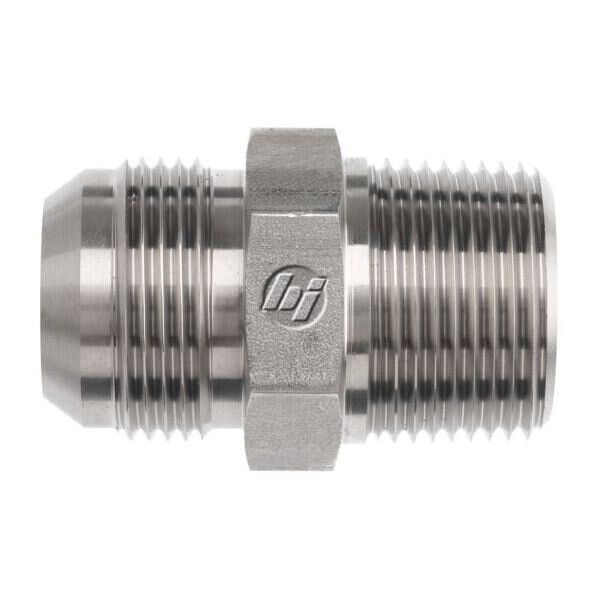

The 2404-08-16 hydraulic adapter delivers strong, reliable performance for demanding fluid applications. Designed with a 1/2" Male JIC 37° flare connection and a 1" Male NPTF thread, it ensures secure, leak-resistant integration in high-pressure systems. Manufactured from durable straight steel with Cr3 plating, it offers excellent corrosion resistance and long-lasting service life. Precision-built to SAE J514 and SAE J476 standards, this fitting is ideal for use in industrial, agricultural, and heavy-equipment hydraulic setups. A dependable choice where strength and tight sealing are essential.
Fitting Chart- 1/2" MJIC x 1" MNPT straight hydraulic adapter
- Made from heavy-duty steel with corrosion-resistant Cr3 plating
- Supports high-pressure performance up to 3000 PSI
- Manufactured to SAE J514 & SAE J476 standards
- Precision-machined threads ensure tight, leak-free operation
- Ideal for hydraulic, industrial, and heavy-machinery applications
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1-11-1/2 |
| Thread B2 Drill In | 0.938 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.375 |
| Overall Length L In | 2.05 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.32 |
| Maximum Dynamic Pressure Psi | 3000 |
| California Residents | Prop-65 Warning |
