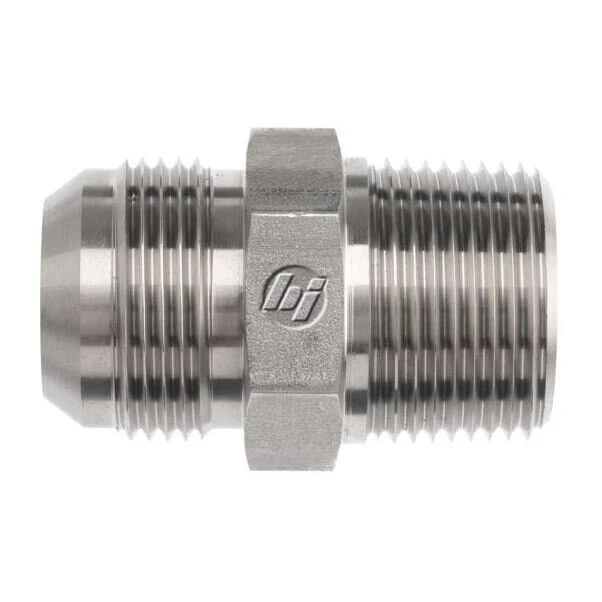

The Brennan Industries #10 MJIC x 3/4" MNPT Straight Hydraulic Fitting is constructed from durable steel with a corrosion-resistant Cr3 plating. It connects a 7/8-14 Male JIC SAE 37 Flare to a 3/4"-14 Male NPTF thread, offering a strong and leak-free seal for hydraulic systems. Rated for up to 5000 PSI, this fitting meets SAE J514 and J476 standards and is ideal for demanding industrial and fluid power applications.
Fitting Chart- High-strength steel body with corrosion-resistant Cr3 plating
- 7/8-14 Male JIC SAE 37 Flare to 3/4"-14 Male NPTF connection
- Supports pressures up to 5000 PSI
- Compliant with SAE J514 (JIC) and SAE J476 (NPTF) specifications
- Straight design with 1.95" overall length and 1.125" body hex
- Includes California Prop-65 warning
| Thread B1 Type | Male Jic Sae 37 Degree Flare |
| Thread B1 Size | 7/8-14 |
| Thread B1 Drill In | 0.484 |
| Thread B1 Specification | Sae J514 |
| Thread B2 Type | Male Nptf |
| Thread B2 Size | 3/4-14 |
| Thread B2 Drill In | 0.719 |
| Thread B2 Specification | Sae J476 |
| Body Hex In | 1.125 |
| Overall Length L In | 1.95 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.2675 |
| Maximum Dynamic Pressure Psi | 5000 |
| California Residents | Prop-65 Warning |
