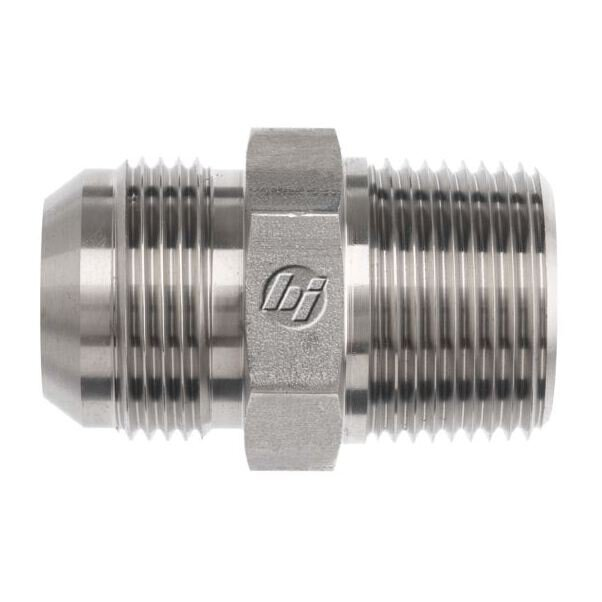

The 2404-16-16 is a heavy-duty straight hydraulic adapter designed to connect 1" MJIC (1-5/16-12) to 1" MNPT with a secure, leak-resistant seal. Made from high-strength straight steel with Cr3 plating, it offers excellent durability and corrosion resistance in demanding hydraulic systems. The fitting supports high-pressure performance up to 3000 PSI, making it suitable for industrial, construction, and fluid-transfer applications. Its precision-machined threads and 1.375" body hex ensure stable installation and reliable flow performance. Perfect for use in high-pressure lines requiring JIC-to-NPT conversion.
Fitting Chart- 1" Male JIC (1-5/16-12) x 1" Male NPT straight adapter
- Strong steel construction with Cr3 corrosion-resistant plating
- Rated for 3,000 PSI dynamic pressure
- 1.375" body hex for easy tightening and secure fit
- Precision machined to SAE J514 & SAE J476 standards
- Ideal for hydraulic equipment, machinery, and high-pressure fluid applications
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 0.844 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1-11-1/2 |
| Thread B2 Drill In | 0.844 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.375 |
| Overall Length L In | 2.3 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.44 |
| Maximum Dynamic Pressure Psi | 3000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 4.348 |
