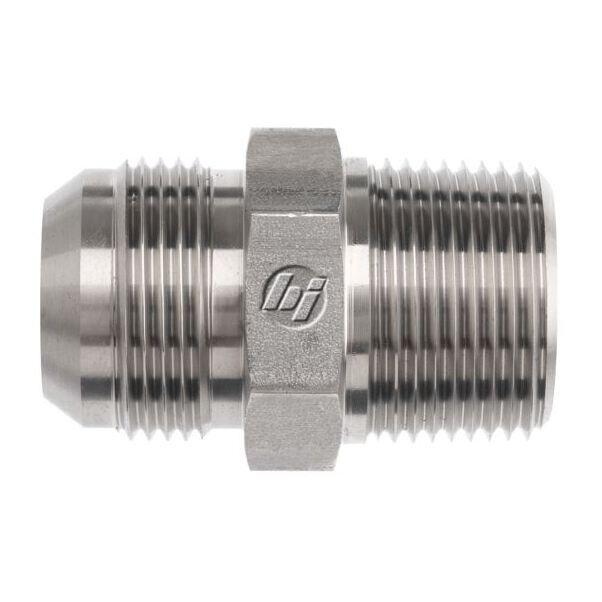

The Brennan 2404-20-20-SS is a heavy-duty stainless steel 1-1/4" MJIC x 1-1/4" MNPT straight adapter, engineered for high-pressure hydraulic systems requiring corrosion-resistant performance. Featuring a 1-5/8-12 male JIC 37° flare connection and a 1-1/4-11.5 male NPTF port, this fitting ensures strong, leak-free sealing even under demanding conditions. Made from premium straight stainless steel, it offers exceptional durability, reliability, and compatibility with a wide range of hydraulic fluids. Its robust design and precise machining make it ideal for industrial, marine, and heavy equipment applications operating up to 3000 PSI.
Fitting Chart- 1-1/4" MJIC (1-5/8-12) x 1-1/4" MNPTF straight hydraulic adapter
- Corrosion-resistant stainless steel construction for long service life
- Meets SAE J514 & SAE J476 specifications for reliable sealing
- Supports high-performance hydraulic systems up to 3000 PSI
- Precision-machined with 1.688" body hex for easy installation and secure tightening
- Ideal for high-pressure, high-vibration, and harsh-environment applications
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.078 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1-1/4-11-1/2 |
| Thread B2 Drill In | 1.25 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.688 |
| Overall Length L In | 2.45 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.6562 |
| Maximum Dynamic Pressure Psi | 3000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 6.981 |
