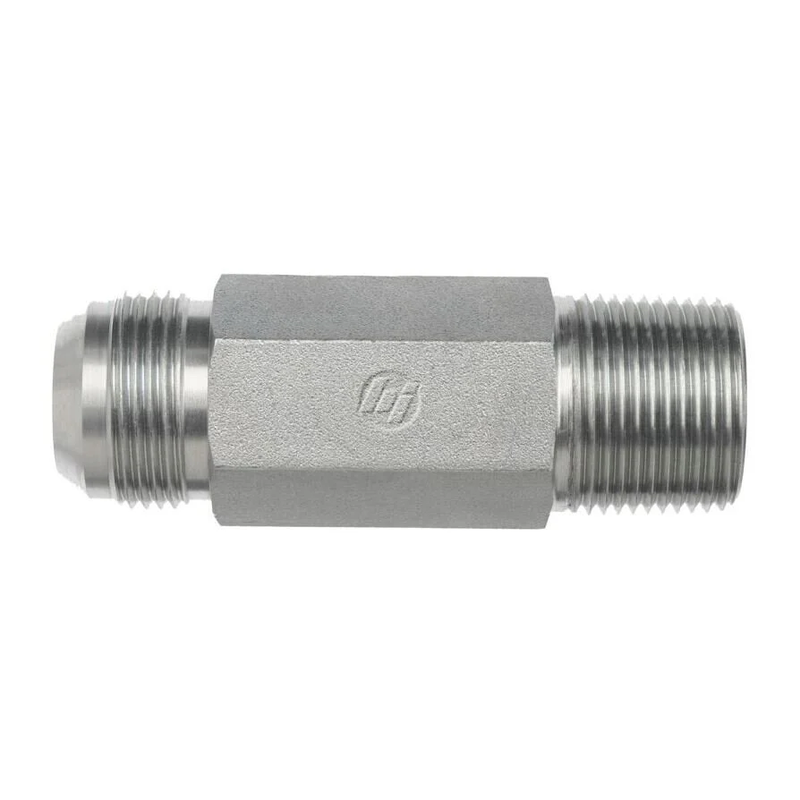

The Brennan 2404-L-04-04-SS is a high-quality stainless steel hydraulic fitting designed for secure, leak-free connections. It features a 1/4" JIC male thread and 1/4" MNPT male thread, providing compatibility with a wide range of hydraulic systems. Made from durable stainless steel, this straight fitting offers excellent corrosion resistance and long-lasting performance in high-pressure environments. Its compact design allows for easy installation in tight spaces. Ideal for industrial, automotive, and high-pressure fluid applications, ensuring reliability and safety in every connection.
Fitting Chart- Engineered for leak-free, high-pressure hydraulic connections
- Stainless steel construction for corrosion resistance and long-term durability
- Compact, straight design allows installation in tight or confined spaces
- Compatible with industrial and automotive hydraulic systems
- Lightweight yet strong, ensuring reliable performance over time
- Rated for high-pressure applications up to 6000 PSI
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.625 |
| Overall Length L In | 2.25 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.137 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 0.879 |
