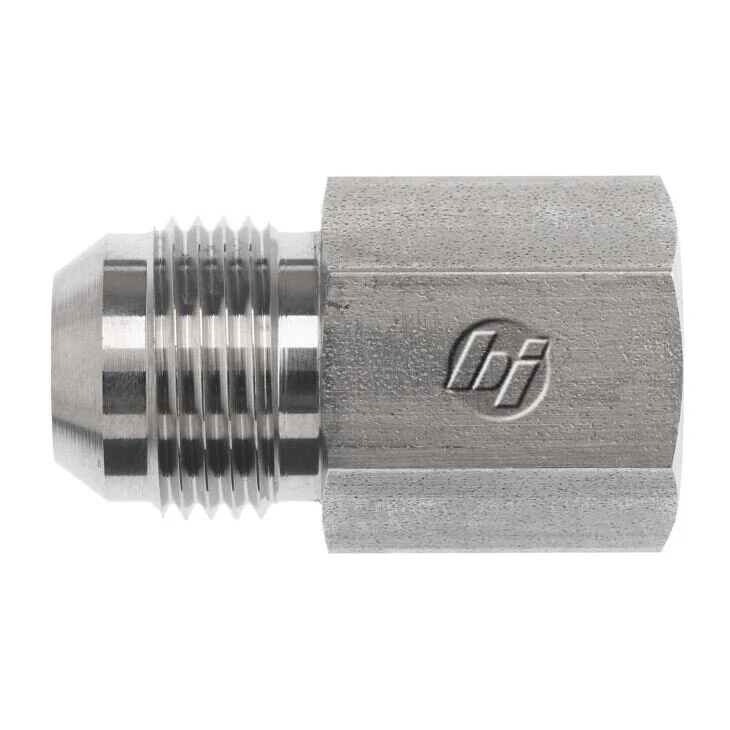

The Brennan 2405-04-04 hydraulic fitting is a precision-engineered straight connector designed to join 1/4" MJIC (SAE 37° flare) to 1/4" FNPT connections. Built from high-quality straight steel and finished with Cr3 plating, it ensures excellent durability and corrosion resistance. With a compact body and reliable sealing performance, this fitting supports high-pressure hydraulic applications with ease. Ideal for industrial, automotive, and heavy-equipment systems requiring dependable fluid transfer. Designed to meet SAE J514 and SAE J476 standards for maximum safety and compatibility.
Fitting Chart- Converts 1/4" Male JIC (37° flare) to 1/4" Female NPTF connection
- High-pressure performance up to 6000 PSI
- Made from strong straight steel with corrosion-resistant Cr3 plating
- Compact straight-body design for tight-space installations
- Manufactured to SAE J514 and SAE J476 specifications
- Ideal for hydraulic, pneumatic, and industrial fluid systems
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 1.39 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.093 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
