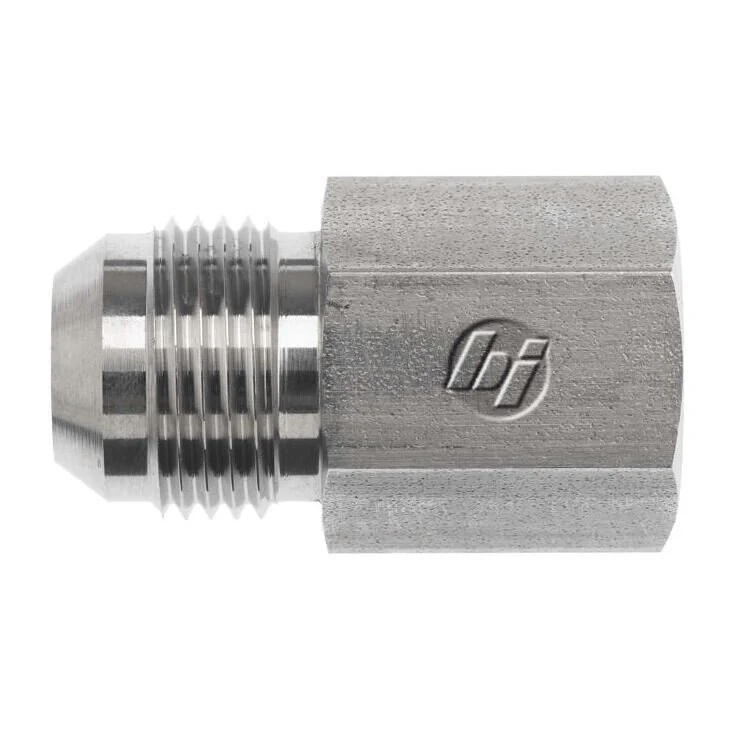

The Brennan 2405-08-04 hydraulic fitting is a precision-engineered connector designed for secure, leak-free performance in high-pressure hydraulic systems. It features a 1/2" MJIC male 37° flare (3/4-16 thread) to 1/4" FNPT female connection, ensuring full compatibility with SAE J514 and SAE J476 standards. Built from strong straight steel with a protective Cr3 plating finish, this fitting delivers excellent corrosion resistance and long service life. Its compact straight-body design allows easy installation in industrial, mobile, and general hydraulic applications.
Fitting Chart- Connects 1/2" MJIC male 37° flare (3/4-16 thread) to 1/4" FNPT female
- Manufactured from high-strength straight steel with durable Cr3 plating
- Compliant with SAE J514 (JIC) and SAE J476 (NPTF) specifications
- Straight-body design ensures a secure, leak-free hydraulic connection
- Suitable for high-pressure systems up to 6000 PSI
- Compact overall length (1.55") for easy installation in tight spaces
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.813 |
| Overall Length L In | 1.55 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.15 |
| Maximum Dynamic Pressure Psi | 6000 |
