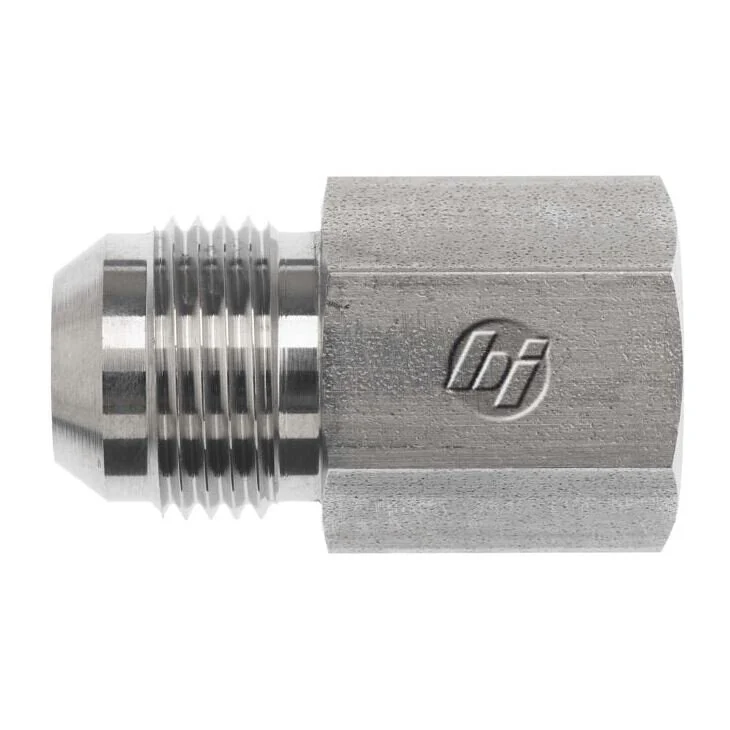

The Brennan 2405-12-12 is a durable 3/4" MJIC to 3/4" FNPT straight hydraulic adapter engineered for high-pressure applications. Built from high-strength steel with Cr3 plating, it delivers corrosion resistance and long-lasting performance. Designed according to SAE J514 and SAE J476 standards, it ensures secure, leak-free connections between JIC and NPTF interfaces. With an overall length of 2.06 inches and a robust 4000 PSI dynamic pressure rating, this fitting is ideal for demanding hydraulic systems. Perfect for industrial, mobile, and heavy-equipment applications requiring reliable fluid transfer.
Fitting Chart- 3/4" MJIC (1-1/16-12) male flare x 3/4"-14 FNPT female straight configuration
- Manufactured from strong steel with Cr3 plating for enhanced corrosion protection
- SAE J514 (JIC) and SAE J476 (NPTF) compliant for secure, leak-resistant performance
- 4000 PSI maximum dynamic pressure-ideal for high-pressure hydraulic systems
- Compact design with 1.375" hex and 2.06" overall length for easy installation
- Lightweight and durable construction, weighing 0.52 lbs
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 3/4-14 |
| Thread B2 Drill In | 0.719 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.375 |
| Overall Length L In | 2.06 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.52 |
| Maximum Dynamic Pressure Psi | 4000 |
