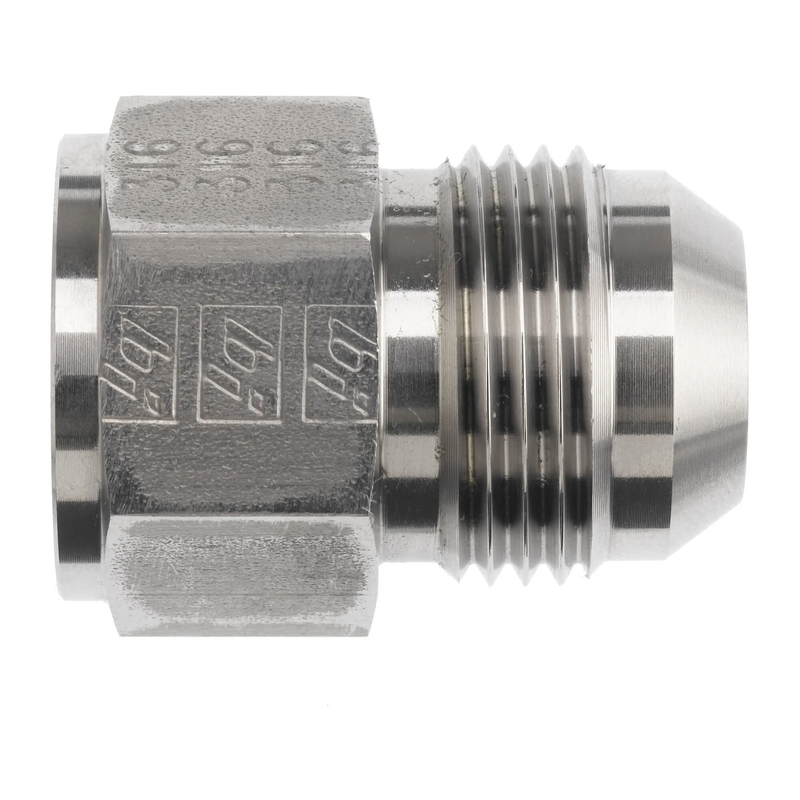

The Brennan 2406-08-04 is a high-quality straight hydraulic adapter featuring a 1/2" Female JIC (3/4-16) to 1/4" Male JIC (7/16-20) connection. Designed under SAE J514 standards, it provides a secure 37° flare seal for leak-free fluid transfer. Constructed from strong straight steel with protective Cr3 plating, this fitting ensures durability and corrosion resistance in demanding hydraulic environments. Its compact 1.45-inch length and 0.875-inch hex make installation easy in tight system layouts. Ideal for industrial, mobile, and high-pressure hydraulic applications requiring reliable JIC-to-JIC connectivity.
Fitting Chart- 1/2" FJIC (3/4-16) x 1/4" MJIC (7/16-20) straight hydraulic adapter
- Precision 37° flare design meeting SAE J514 standards for leak-resistant performance
- Built from durable straight steel with Cr3 plating for enhanced corrosion protection
- Compact size with 0.875" body hex and 1.45" overall length for easy installation
- Lightweight construction at 0.131 lbs without compromising strength
- Ideal for hydraulic lines, industrial machinery, and heavy-equipment fluid systems
| Specification | Details |
| Thread B1 Type | Female JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 7/16-20 |
| Thread B2 Drill In | 0.172 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.45 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.131 |
