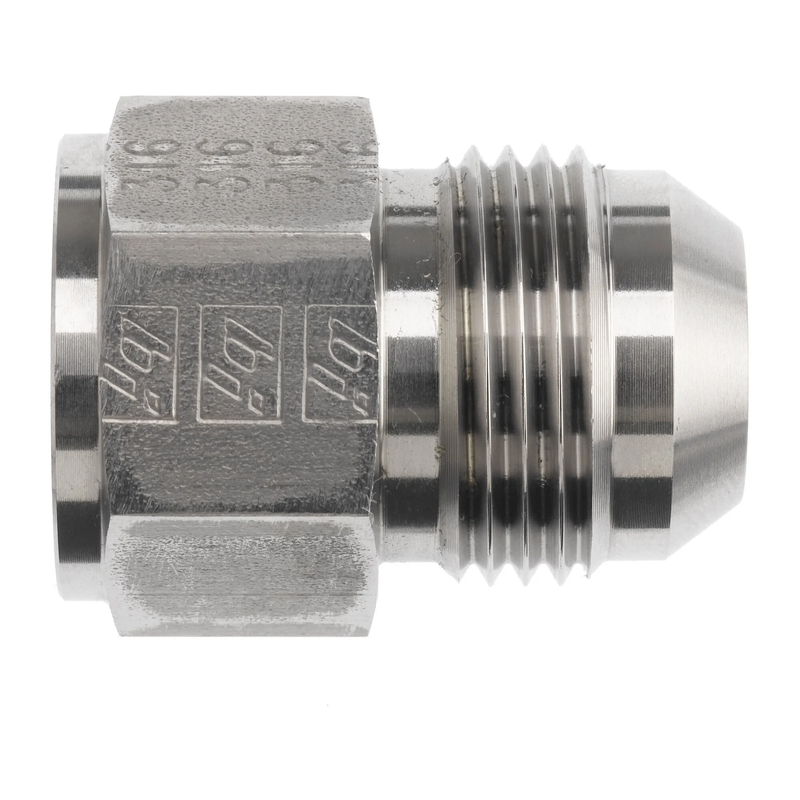

The Brennan 2406-12-08 is a Non-Swivel FJ-MJ Straight Reducer engineered for reliable 37° JIC hydraulic connections. It features a 3/4" Female JIC flare on one end and a 1/2" Male JIC flare on the other, allowing smooth, leak-resistant fluid transfer. Constructed from high-strength steel with Cr3 plating, it offers excellent corrosion protection and durability in high-pressure applications. Its non-swivel configuration provides a secure, fixed connection ideal for equipment where movement is restricted. A precise, straight-body design ensures easy installation and dependable performance across industrial and mobile hydraulic systems.
Fitting Chart- Non-swivel FJ-MJ straight reducer for secure fixed connections
- 3/4" Female JIC x 1/2" Male JIC (37° flare)
- High-strength steel body with Cr3 protective plating
- Leak-resistant SAE J514-compliant flare design
- Compact straight configuration for easy installation
- Suitable for industrial, mobile, and high-pressure hydraulic systems
| Specification | Details |
| Thread B1 Type | Female JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.25 |
| Overall Length L In | 1.68 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.2677 |
